pi-footer-framework

Configurable footer replacement for Pi. It owns footer layout, formatting, color, truncation, and placement while other extensions publish structured status/data for it to render.

Use it when you want to customize Pi's footer through a configurable framework that agents can inspect and reconfigure from natural-language prompts.

Install

pi install npm:@badliveware/pi-footer-framework

No external services or credentials are required.

Quick use

/footerfx on
/footerfx item context line 1
/footerfx item context after model
/footerfx item pr line 3
/footerfx anchor all right
/footerfx save user

The default layout uses two footer lines. If you place an item on another positive line number, the footer grows to include that line. Disable the replacement footer with:

/footerfx off

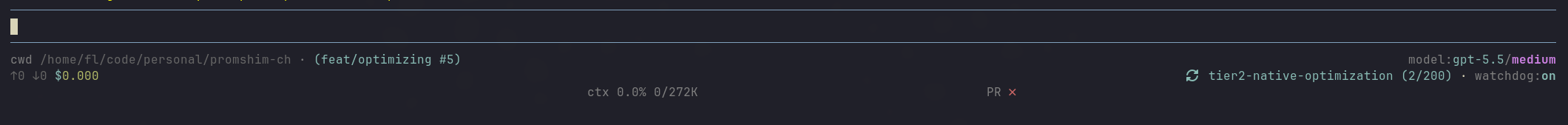

Showcase

This is a real Pi terminal using TS render closures, theme-aware styles, right-anchored layout, responsive column placement, PR state, and an adapted extension status item:

The screenshot demonstrates:

• combined render output: cwd plus branch/PR label in one item
• token-level styling: labels, model id, thinking level, token stats, context, and cost use different Pi theme colors/attributes
• built-in Pi data: cwd, branch, model, stats, context, and pr
• extension status adaptation: compaction-continue status becomes watchdog:on
• flexible placement: line 1 and line 2 are right-anchored, while line 3 uses responsive column placement for middle and center-right items

Save this as ~/.pi/agent/footer-framework.config.ts. The same file ships as examples/footer-framework.config.ts in the npm package.

import type { FooterFrameworkConfig } from "@badliveware/pi-footer-framework";

function shortPath(value: string, maxWidth = 48, tailSegments = 2): string {
  const normalized = value.replace(/^\/home\/[^/]+/, "~");
  const prefix = normalized.startsWith("~/") ? "~/" : normalized.startsWith("/") ? "/" : "";
  const parts = normalized.slice(prefix.length).split("/").filter(Boolean);
  const compact = parts.length > tailSegments ? `${prefix}…/${parts.slice(-tailSegments).join("/")}` : normalized;
  return compact.length > maxWidth ? `…${compact.slice(-(maxWidth - 1))}` : compact;
}

const config = {
  enabled: true,
  lineAnchors: { 1: "right", 2: "right", 3: "left" },
  minGap: 2,
  maxGap: 24,
  items: {
    branch: { visible: false },
    ext: { visible: false },
    cwd: {
      visible: true,
      line: 1,
      zone: "left",
      order: 10,
      render: ({ pi, span, fn }) => [
        span("cwd", "muted"),
        " ",
        span(shortPath(pi.cwd.trim(), 48, 2), "dim"),
        span(" · ", "muted"),
        span(fn.truncate(pi.branch?.label ?? "", 22), "accent"),
      ],
    },
    model: {
      visible: true,
      line: 1,
      zone: "right",
      order: 10,
      render: ({ pi, span }) => [
        span("model:", "muted"),
        span(pi.model.id ?? "no-model", "accent"),
        span("/", "muted"),
        span(pi.model.thinking ?? "", "thinkingXhigh,bold"),
      ],
    },
    stats: {
      visible: true,
      line: 2,
      zone: "left",
      order: 10,
      render: ({ pi, span }) => [
        span("↑", "dim"), span(pi.stats.inputText ?? "0", "dim"), " ",
        span("↓", "dim"), span(pi.stats.outputText ?? "0", "dim"), " ",
        span("$", "accent"), span(pi.stats.costText ?? "0.000", "success"),
      ],
    },
    context: {
      visible: true,
      line: 3,
      zone: "left",
      order: 10,
      column: "50%",
      render: ({ pi, span }) => {
        if (!pi.context) return undefined;
        const tone = pi.context.tone ?? "muted";
        return [span("ctx", tone), " ", span(pi.context.percentText ?? "?%", tone), " ", span(pi.context.tokenText ?? "?/?", tone)];
      },
    },
    pr: {
      visible: true,
      line: 3,
      zone: "left",
      order: 20,
      column: "66%",
      render: ({ pi, span }) => {
        if (!pi.pr) return undefined;
        return [span("PR ", "muted"), span(pi.pr.checkGlyph ?? "•", pi.pr.checkTone ?? "muted"), span(pi.pr.commentsText ?? "", "muted")];
      },
    },
  },
  adapters: {
    watchdog: {
      source: "extensionStatus",
      key: "compaction-continue",
      itemId: "watchdog",
      match: "(on|off)",
      group: 1,
      urlPath: "url",
      placement: { visible: true, line: 2, zone: "right", order: 20 },
      render: ({ value, span }) => [span("watchdog:", "muted"), span(value ?? "", "accent,bold")],
    },
  },
} satisfies FooterFrameworkConfig;

export default config;

String column positions such as "50%", "66%", and "center" are resolved from the current terminal width, so they keep their relative position after resize. Numeric columns remain fixed absolute terminal columns.

How it works

Footer-framework renders normalized footer items from adapter mappings, direct TS/JS item renderers, and extension-published items. Adapter mappings can read three source types:

Source	Use it for
pi	Built-in Pi/session/footer data such as cwd, model, stats, context, branch, pr, and extensionStatuses.
extensionStatus	Existing ctx.ui.setStatus() footer/status entries from other extensions.
sessionEntry	The latest custom session entry written by an extension with pi.appendEntry().

The built-in footer items (cwd, model, branch, stats, context, pr) are regular default adapters unless you replace them with items.<id>.render in TS/JS config. User/project config overrides built-in defaults and producer hints.

Agents can inspect concise footer-relevant data with footer_framework_sources, then add adapter rules with footer_framework_adapter_config or adjust layout with footer_framework_config. Runtime metadata such as tools, commands, skills, descriptions, and sourceInfo is opt-in via includeTools, includeCommands, includeSkills, and includeDetails.

Templates and styles

Adapters can render with a restricted Liquid-style interpolation subset:

{{ pi.stats.costText }}
{{ "EUR" }}
{{ "EUR" | style: "accent" }}{{ pi.stats.costText | style: "success,bold" }}

Quoted strings are literals. Unquoted terms are variables, so missing variables are reported as template diagnostics instead of being guessed as text. Diagnostics appear in /footerfx-debug, footer_framework_state, and footer_framework_sources.

Useful template context:

Path	Meaning
value, label, status, data, url	The current adapter source.
pi.cwd	Current working directory.
pi.model.id, pi.model.provider, pi.model.thinking	Current model information.
pi.stats.inputText, pi.stats.outputText, pi.stats.costText	Formatted session token/cost stats. Raw numbers are input, output, and cost.
pi.context.percentText, pi.context.tokenText, pi.context.tone	Context usage and recommended tone.
pi.branch.name, pi.branch.label	Git branch values. Use truncate in templates when you want a shorter display.
pi.pr.number, pi.pr.url, pi.pr.checkGlyph, pi.pr.checkTone, pi.pr.commentsText	Pull request state when available.

Supported filters:

Filter	Example
style / color	`{{ value
bg / background	`{{ value
bold, italic, underline, inverse, strikethrough	`{{ value
link	`{{ pi.pr.number
truncate	`{{ pi.branch.label
compactPath	`{{ pi.cwd
default	`{{ data.state

Style strings use Pi theme tokens and text attributes. Foreground examples: accent, muted, dim, success, warning, error, text, mdLink, toolDiffAdded, and the other Pi theme foreground tokens. Backgrounds use bg:<token>, such as bg:toolSuccessBg. Attributes are bold, italic, underline, inverse, and strikethrough.

TypeScript render config

For personal formatting logic, use a normal TS/JS config file with render closures. Footer-framework still owns data collection, layout, clipping, diagnostics, and final rendering; the closure only returns text/spans for one item.

import type { FooterFrameworkConfig } from "@badliveware/pi-footer-framework";

function shortPath(value: string, maxWidth = 48, tailSegments = 2) {
  const normalized = value.replace(/^\/home\/[^/]+/, "~");
  const prefix = normalized.startsWith("~/") ? "~/" : normalized.startsWith("/") ? "/" : "";
  const parts = normalized.slice(prefix.length).split("/").filter(Boolean);
  const compact = parts.length > tailSegments ? `${prefix}…/${parts.slice(-tailSegments).join("/")}` : normalized;
  return compact.length > maxWidth ? `…${compact.slice(-(maxWidth - 1))}` : compact;
}

export default {
  items: {
    branch: { visible: false },
    ext: { visible: false },
    cwd: {
      line: 1,
      zone: "left",
      order: 10,
      render: ({ pi, span, fn }) => [
        span("cwd", "muted"),
        " ",
        span(shortPath(pi.cwd.trim(), 48, 2), "dim"),
        span(" · ", "muted"),
        span(fn.truncate(pi.branch?.label ?? "", 22), "accent"),
      ],
    },
  },
} satisfies FooterFrameworkConfig;

Render functions are synchronous and may return strings, spans, arrays, null, or undefined. Use span(text, style, { url }) for token-level style/link metadata and fn.text, fn.width, fn.truncate, or fn.compactPath for footer-safe helpers. Adapter render functions also receive value, label, status, data, url, and source.

/footerfx-debug, footer_framework_state, and footer_framework_sources show which TS/JS renderers loaded plus each rendered item's final tokens, width, placement, and diagnostics. If a render closure throws or returns a promise, the footer item is skipped and a diagnostic is recorded.

Configuration files

User settings persist to:

~/.pi/agent/footer-framework.json

Optional user TS/JS config files live next to it:

~/.pi/agent/footer-framework.config.ts
~/.pi/agent/footer-framework.config.js

Project settings can override them:

<project>/.pi/footer-framework.json
<project>/.pi/footer-framework.config.ts

Load order is defaults, user TS/JS, user JSON, project TS/JS, then project JSON. /footerfx commands write JSON overrides; they do not rewrite TS/JS source. Use /footerfx save project only when you intentionally want a project-specific footer layout.

Commands

Command	What it does
/footerfx	Show current config and source.
/footerfx on / /footerfx off	Enable or disable the replacement footer.
/footerfx config	Show loaded config source and config paths.
/footerfx load	Reload user/project config files.
/footerfx save user	Save current settings as the user default.
/footerfx save project	Save current settings for the current project.
/footerfx reset	Restore defaults and persist them to user config.
`/footerfx section <cwd	stats
`/footerfx item <show	hide
/footerfx item <id> line <n> / row <n>	Move an item to any positive footer line.
`/footerfx item zone <left	right>`
/footerfx item <id> before <other-id> / after <other-id>	Place an item relative to another item.
`/footerfx item column <n	center
`/footerfx anchor <line	all> <gap
/footerfx adapter	List configured adapters.
/footerfx adapter <id> pi <source-key> [label]	Adapt a built-in Pi source.
/footerfx adapter <id> status <status-key> [label]	Adapt an existing extension status key.
/footerfx adapter <id> custom <custom-type> <path> [label]	Adapt the latest matching custom session entry.
/footerfx adapter <id> template <template>	Set the adapter's render template.
/footerfx adapter <id> empty-template <template>	Set the template used for an empty adapter value.
/footerfx adapter <id> style <style>	Apply a default style to the rendered adapter text.
/footerfx adapter <id> remove	Remove an adapter. For built-ins, hide the item with /footerfx item <id> hide.
/footerfx gap <min> <max>	Set spacing bounds.
/footerfx-debug	Show render snapshot, settings, template/render diagnostics, loaded TS/JS renderers, and layout telemetry.

Agent tools

The extension exposes tools so agents can inspect and adjust the footer without asking you to run commands:

• footer_framework_state
• footer_framework_sources
• footer_framework_config
• footer_framework_adapter_config

footer_framework_sources is concise by default. Pass includeTools, includeCommands, includeSkills, and includeDetails only when runtime metadata is directly useful.

Extension data API

Compatible extensions should publish data, not pre-rendered layout. The framework decides final text, color, position, and truncation. Producers may include hints, but user config wins.

pi.events.emit("footer-framework:item", {
  id: "cache:status",
  label: "cache",
  value: "warm",
  tone: "success",
  data: { entries: 42 },
  hint: {
    icon: "◇",
    format: "label-value",
    placement: { line: 2, zone: "right", order: 50 }
  }
});

Legacy text and top-level placement fields still work for existing extensions, but new integrations should prefer label, value, status, data, and hint.

Remove an item with:

pi.events.emit("footer-framework:item", { id: "cache:status", remove: true });

Troubleshooting

Blank space below the footer

If blank rows sometimes appear below the footer and disappear after you send a prompt, check /footerfx-debug or footer_framework_state. When lastFooterSnapshot.lines contains only the expected footer lines, the framework is not rendering extra rows. This is usually Pi's TUI viewport/differential rendering leaving unused terminal space below the last rendered component.

A Pi-side workaround is terminal.clearOnShrink: true in ~/.pi/agent/settings.json, but that can add redraw flicker. Footer-framework does not change this setting.
