pi-shell-acp

Use Claude Code, Codex, and Gemini CLI through Agent Client Protocol (ACP) inside pi.

· maintained by junghanacs.com

Public, active development. Real working code, still young. Verify it in your own workflow before relying on it all day. Evidence calibration: VERIFY.md.

pi
  → pi-shell-acp
    → claude-agent-acp | codex-acp | gemini --acp
      → Claude Code | Codex | Gemini CLI

pi-shell-acp is a thin ACP provider for pi: no OAuth proxy, no CLI transcript scraping, no Claude Code emulation. It connects pi to locally authenticated ACP backends with no core patch and no bypass. Each backend keeps its own model, API, and tool semantics; the bridge shapes only the pi-facing operating surface.

Direction. Inverse of pi-acp. pi-acp lets external ACP clients talk to pi; pi-shell-acp lets pi talk to ACP backends.

Anthropic subscription billing. From 2026-06-15, Anthropic third-party agent paths (ACP, Agent SDK, claude -p, pi-shell-acp's Claude backend) consume a separate Agent SDK credit pool, distinct from Claude chat and the claude CLI used as an interactive terminal. pi-shell-acp respects that distinction — no bypass, no emulation — and preserves capability dignity across all three backends (see AGENTS.md invariants #7, #9, #10). The recommended default runtime leans toward paths outside Anthropic's Agent SDK metering (Codex / Gemini); Claude remains a strong coding worker invoked when its quality is worth the credit cost. The operator decides the mix.

Concept primer

A few words that look unusual for a coding tool.

• Entwurf (기투, projection-of-self) — sibling sessions with their own runtime boundary. Not "delegate," not "worker," not "sub-agent." Spawn, resume, and live peer messaging are first-class.
• Engraving — optional short operator text delivered through each backend's native identity carrier. Not a giant hidden prompt, not a tool catalog.
• MCP — in this repo, MCP is just the transport by which ACP-backed sessions receive pi capabilities that native pi exposes directly as extensions. It is not a general MCP platform. Explicit piShellAcpProvider.mcpServers only; no ambient ~/.mcp.json scanning, no automatic retrieval. The same pi-tools-bridge entry can also be wired into another host's MCP catalog (Claude Code, Codex, Gemini, …) when the operator chooses. entwurf_self requires a pi session sender envelope; entwurf_send can deliver to live pi sessions from an explicitly wired external MCP host, but only pi-session senders are replyable.
• Session persistence — re-attaches pi to the same remote ACP session. Does not hydrate backend transcripts into pi history.

Install

pi-shell-acp is a thin ACP bridge — it connects pi to a local Claude/Codex/Gemini backend the operator has already installed and authenticated. The bridge does not provide Claude credentials, tokens, or subscription access, and does not bypass any backend auth. Whatever the operator's local claude / codex / gemini already trusts is what pi-shell-acp uses.

pi accepts four install sources for the bridge — npm: or git:, each in global (default, writes to ~/.pi/agent/settings.json) or project (-l flag, writes to .pi/settings.json) scope. A fifth path is a local clone for hacking on the bridge.

After installing the package, run run.sh install . in your target project. The script writes the piShellAcpProvider block into .pi/settings.json with the correct absolute path for pi-tools-bridge/start.sh — no hand-editing required. The exact location of run.sh depends on which install path was used (each section below shows it). For manual configuration, pi/settings.reference.json is the reference shape — see Settings below.

From npm — global

pi install npm:@junghanacs/pi-shell-acp
cd /path/to/your-project
"$(npm root -g)/@junghanacs/pi-shell-acp/run.sh" install .
"$(npm root -g)/@junghanacs/pi-shell-acp/run.sh" smoke-all .

From npm — project (-l flag)

cd /path/to/your-project
pi install -l npm:@junghanacs/pi-shell-acp
./.pi/npm/node_modules/@junghanacs/pi-shell-acp/run.sh install .
./.pi/npm/node_modules/@junghanacs/pi-shell-acp/run.sh smoke-all .

From source via pi — global (alternative)

pi install git:github.com/junghan0611/pi-shell-acp
cd /path/to/your-project
~/.pi/agent/git/github.com/junghan0611/pi-shell-acp/run.sh install .
~/.pi/agent/git/github.com/junghan0611/pi-shell-acp/run.sh smoke-all .

From source via pi — project (-l flag)

cd /path/to/your-project
pi install -l git:github.com/junghan0611/pi-shell-acp
./.pi/git/github.com/junghan0611/pi-shell-acp/run.sh install .
./.pi/git/github.com/junghan0611/pi-shell-acp/run.sh smoke-all .

Local development clone

git clone https://github.com/junghan0611/pi-shell-acp ~/repos/gh/pi-shell-acp
cd ~/repos/gh/pi-shell-acp
pnpm install
pi install ./
./run.sh install /path/to/your-project
./run.sh smoke-all /path/to/your-project

First time on a clean Ubuntu / Debian / macOS host? See the clean-host walk-through — Stages 0–4b verified end-to-end: nvm + pnpm + pi install, pi install git:..., run.sh install ., missing-auth boundary surface, and authenticated runtime smoke for Claude / Codex / Gemini.

The OpenClaw plugin sibling lives at plugins/openclaw and ships as its own npm package (@junghanacs/openclaw-pi-shell-acp). It is not part of the root pi-shell-acp install above — see Host adapters.

Extension set — do not filter. pi-shell-acp ships four pi.extensions entries as a single set: the provider extension (index.ts) plus three pi-extensions/*.ts modules (entwurf, entwurf-control, model-lock). Filtering some out via pi's object-form package configuration can leave the model lock or entwurf surface in a broken state. Disable the entire package or none of it unless you know precisely which boundary you are turning off.

Backend prerequisites

Claude / Codex ACP server packages (@agentclientprotocol/claude-agent-acp, @zed-industries/codex-acp) ship as pinned dependencies of pi-shell-acp; backend authentication still belongs to the operator's local CLI / runtime. Once the bridge is installed, the resolver picks the ACP server in this order:

1. CLAUDE_AGENT_ACP_COMMAND / CODEX_ACP_COMMAND env override — explicit override for an alternative binary or a wrapper command.
2. require.resolve(...) against the bundled package dependency — @agentclientprotocol/claude-agent-acp for Claude, @zed-industries/codex-acp for Codex. This is the default path; no extra global install needed.
3. PATH:claude-agent-acp / PATH:codex-acp fallback — used when the package resolution fails (e.g. a hand-edited node_modules).

Codex smoke (no global install required — the codex-acp pinned in dependencies is resolved automatically):

./run.sh smoke-codex /path/to/your-project

To force a global codex-acp (PATH fallback or development override):

pnpm add -g @zed-industries/codex-acp@0.14.0

Gemini is different — the gemini CLI binary is itself the ACP server, not a separate *-acp server package. It must be installed and authenticated on the operator's machine. Curated model: pi-shell-acp/gemini-3.1-pro-preview.

pnpm add -g @google/gemini-cli
gemini   # one-time interactive login (oauth-personal) or set GEMINI_API_KEY
./run.sh smoke-gemini /path/to/your-project

Backend is inferred from the model — Anthropic → claude, OpenAI → codex, Gemini → gemini. Set backend only to pin.

Host adapters

This repo also carries plugins/* — sibling packages that adapt the same bridge to non-pi hosts. Currently:

• plugins/openclaw — OpenClaw plugin, prerelease (manual install only; not published to npm or ClawHub yet).

Each adapter has its own README.md. They do not change the pi-facing surface above.

Emacs frontends

Works from terminals and from Emacs frontends that launch pi-coding-agent.

For a dedicated agent socket, pass the socket name:

(setq pi-coding-agent-extra-args
      '("--entwurf-control" "--emacs-agent-socket" "pi"))

The bridge exports the socket name to ACP children as PI_EMACS_AGENT_SOCKET, so skills call Emacs without hardcoding:

emacsclient -s "${PI_EMACS_AGENT_SOCKET:-server}" --eval '(...)'

Settings

Reference shape lives in pi/settings.reference.json. Minimum:

{
  "compaction": { "enabled": false },
  "piShellAcpProvider": {
    "appendSystemPrompt": false,
    "settingSources": [],
    "strictMcpConfig": true,
    "showToolNotifications": true,
    "tools": ["Read", "Bash", "Edit", "Write"],
    "skillPlugins": [],
    "permissionAllow": ["Read(*)", "Bash(*)", "Edit(*)", "Write(*)", "mcp__*"],
    "mcpServers": {
      "pi-tools-bridge": {
        "command": "/path/to/pi-shell-acp/mcp/pi-tools-bridge/start.sh",
        "args": []
      }
    }
  }
}

mcpServers is the only ACP MCP injection path. In practice this repo is about the bundled pi-tools-bridge, which carries pi capabilities into ACP-backed sessions — not about being a general MCP catalog. Invalid entries throw McpServerConfigError — broken tool state surfaces as broken tool state. ./run.sh install writes the bundled pi-tools-bridge entry and prunes the legacy bundled session-bridge entry from older installs.

appendSystemPrompt: false is intentional. Pi / AGENTS context rides the first-user augment; putting it into the Claude _meta.systemPrompt carrier can route OAuth sessions to metered "extra usage" billing.

Wiring pi-tools-bridge into an external MCP host

The same pi-tools-bridge entry shape is accepted by other MCP-aware hosts (Claude Code, Codex, Gemini CLI, …). For Claude Code, two equivalent paths — both result in the same loaded server:

Option A — CLI add:

claude mcp add --scope user pi-tools-bridge \
  bash /absolute/path/to/pi-shell-acp/mcp/pi-tools-bridge/start.sh

This writes the entry into ~/.claude.json's top-level mcpServers. ~/.claude.json also holds OAuth tokens and cache, so it is not safe to share or version-control. Good for one-off setup.

Option B — separated ~/.mcp.json (recommended for SSOT / dotfile workflows):

{
  "mcpServers": {
    "pi-tools-bridge": {
      "type": "stdio",
      "command": "bash",
      "args": [
        "/absolute/path/to/pi-shell-acp/mcp/pi-tools-bridge/start.sh"
      ],
      "env": {
        "PI_TOOLS_BRIDGE_EXTERNAL_AGENT_ID": "external-mcp/claude-code"
      }
    }
  }
}

Claude Code reads ~/.mcp.json in addition to ~/.claude.json's top-level mcpServers. Keeping the entry in ~/.mcp.json makes it shareable and version-controllable (e.g. via a dotfiles or agent-config repo) without exposing the OAuth-bearing ~/.claude.json. The env block identifies the calling host on the receiver render — omit it and entwurf_send shows external-mcp/unknown-host.

Prerequisites on the host running the external MCP client:

• pi on PATH (for entwurf / entwurf_resume spawn paths).
• ~/.pi/agent/entwurf-targets.json (target registry) when calling entwurf.
• A live pi session launched with --entwurf-control populates ~/.pi/entwurf-control/<sessionId>.sock; required for entwurf_send and entwurf_peers.

From an external MCP host:

• entwurf, entwurf_resume, entwurf_peers work directly.
• entwurf_send delivers with origin: "external-mcp" / replyable: false; wants_reply: true is rejected.
• entwurf_self refuses to return — it requires a pi session sender envelope (PI_SESSION_ID + PI_AGENT_ID).

For external MCP hosts with a primary instruction file (CLAUDE.md for Claude Code, AGENTS.md for Codex, GEMINI.md for Gemini CLI), propagating the Asymmetric Mitsein workflow rules into that file lets the host auto-apply them without per-call clarification — which entwurf tools are valid from outside a pi session, the default mode / wants_reply, and the natural-language-to-tool-call mapping. On Claude Code, the mcp__* permission wildcard (or per-tool entries) in permissions.allow removes the first-call trust prompt friction.

See the MCP entry in Concept primer and the sender envelope contract in AGENTS.md.

Per-backend operating surface

Each backend keeps its native model / API / tools; pi-shell-acp shapes only what enters from pi. All three backends honor explicit CLAUDE_CONFIG_DIR, CODEX_HOME, CODEX_SQLITE_HOME, GEMINI_CLI_HOME, and GEMINI_SYSTEM_MD exports when set by the operator.

Claude uses _meta.systemPrompt for engraving and CLAUDE_CONFIG_DIR for a whitelist overlay so auth/runtime entries stay available while operator memory, hooks, agents, history, local settings, and project memory remain hidden. The overlay writes an explicit empty hooks: {} because Claude SDK organic compaction needs the configured-empty shape; no operator hook definitions are inherited. The four-tool baseline (Read, Bash, Edit, Write) is enforced through tools + permissionAllow; Skill is added automatically when skillPlugins is non-empty. Operator context cap override: PI_SHELL_ACP_CLAUDE_CONTEXT=<int>.

Codex has no _meta.systemPrompt, so engraving rides codex-rs -c developer_instructions="<...>". Defaults: approval_policy=never, sandbox_mode=danger-full-access, web_search=disabled. codexDisabledFeatures (default: image_generation, tool_suggest, tool_search, multi_agent, apps, memories) fails closed on surfaces that would bypass pi's MCP/tool model; codexDisabledFeatures: [] opts out and emits a warning. PI_SHELL_ACP_CODEX_MODE=auto|read-only narrows the default mode. CODEX_HOME + CODEX_SQLITE_HOME point at a pi-owned overlay that keeps auth/runtime entries and codex state DBs but hides operator history, rules, top-level AGENTS.md, personal config, sessions, logs, and memories. codex-rs registers some native tools (update_plan, request_user_input, view_image, MCP resource readers) without config gates; pi-shell-acp documents this mismatch — closing it requires codex-rs changes.

Gemini exposes neither _meta.systemPrompt nor developer_instructions but honors GEMINI_SYSTEM_MD=<path> as a full native-system-body replacement; pi-shell-acp authors that overlay file. GEMINI_CLI_HOME redirects the binary's homedir() to a pi-owned overlay. The tool surface uses defense in depth at two layers — tools.core 8-name allowlist (read_file, list_directory, glob, grep_search, write_file, replace, run_shell_command, activate_skill) plus a deny-all --admin-policy with the same class allow. GEMINI.md discovery and cwd dir-tree auto-attach are suppressed; the overlay rebuilds every spawn and sweeps <configDir>/{tmp,history,projects}/. Operator context cap override: PI_SHELL_ACP_GEMINI_CONTEXT=<int>.

Pi is the canonical memory authority (semantic-memory + Denote llmlog); Claude, Codex, and Gemini native memory layers are pinned off, and engraving ${...} literals are byte-split with U+200B before Gemini system.md write so they are visually stable but non-interpolatable.

Smoke commands

./run.sh smoke-all .        # triple-backend gate (Gemini auto-skips when not on PATH)
./run.sh smoke-claude .
./run.sh smoke-codex .
./run.sh smoke-gemini .
./run.sh verify-resume .    # cross-process continuity with acpSessionId diagnostics

Custom skills

Claude sessions accept custom skills through skillPlugins — an array of absolute paths to directories matching the Claude Agent SDK plugin layout:

<your-plugin-root>/
├── .claude-plugin/
│   └── plugin.json
└── skills/
    └── <skill-name>/
        └── SKILL.md

A self-contained example lives at pi/skill-plugin-example/. Put plugin roots anywhere on disk except under ~/.pi/agent/ (pi's internal cache).

{
  "piShellAcpProvider": {
    "skillPlugins": ["/absolute/path/to/your-plugin-root"]
  }
}

Skill is auto-added to tools and Skill(*) to permissionAllow whenever skillPlugins is non-empty. Each entry is validated at settings parse time and throws when the path is missing, not absolute, not a directory, or missing .claude-plugin/plugin.json. The Claude session does not start until the violation is fixed. The bridge does not validate plugin.json contents or SKILL.md bodies — that is the Claude Agent SDK's contract.

To verify, start a fresh Claude session and ask the model to list its skills; the names declared in your SKILL.md frontmatter should appear among the visible skills. The operator-driven version of this check is Q-SKILL-CALLABLE in VERIFY.md.

skillPlugins is a Claude-backend-only install surface. Codex and Gemini expose skills through native ~/.codex/skills/ and ~/.gemini/skills/ passthrough; Gemini additionally activates them through the activate_skill tool.

For a real consumer arranging many skills, see agent-config.

Entwurf orchestration

Entwurf is a pi capability with two surfaces. Native pi exposes it directly as an extension tool; ACP-backed sessions reach the same capability through pi-shell-acp's MCP/Unix-socket bridge. The purpose is not to invent a different sub-agent system, but to preserve the same sibling-based model across backends.

Spawning creates a sibling, not a worker, delegate, or sub-agent — the spawned session has its own runtime boundary and its own provider/model identity. Resume preserves model identity (no override). Native pi entwurf defaults to async; sync is opt-in for short status checks (<5s). The external MCP bridge remains sync-only for now.

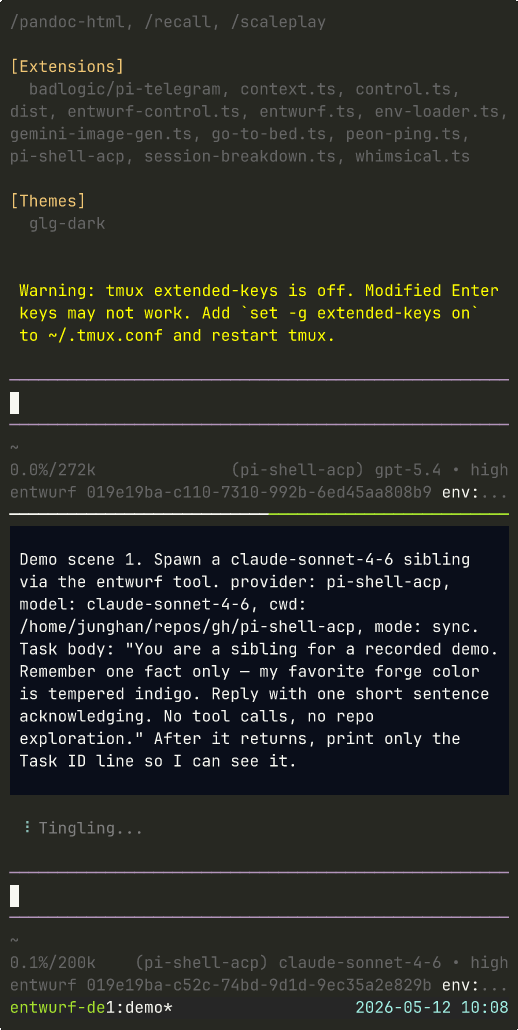

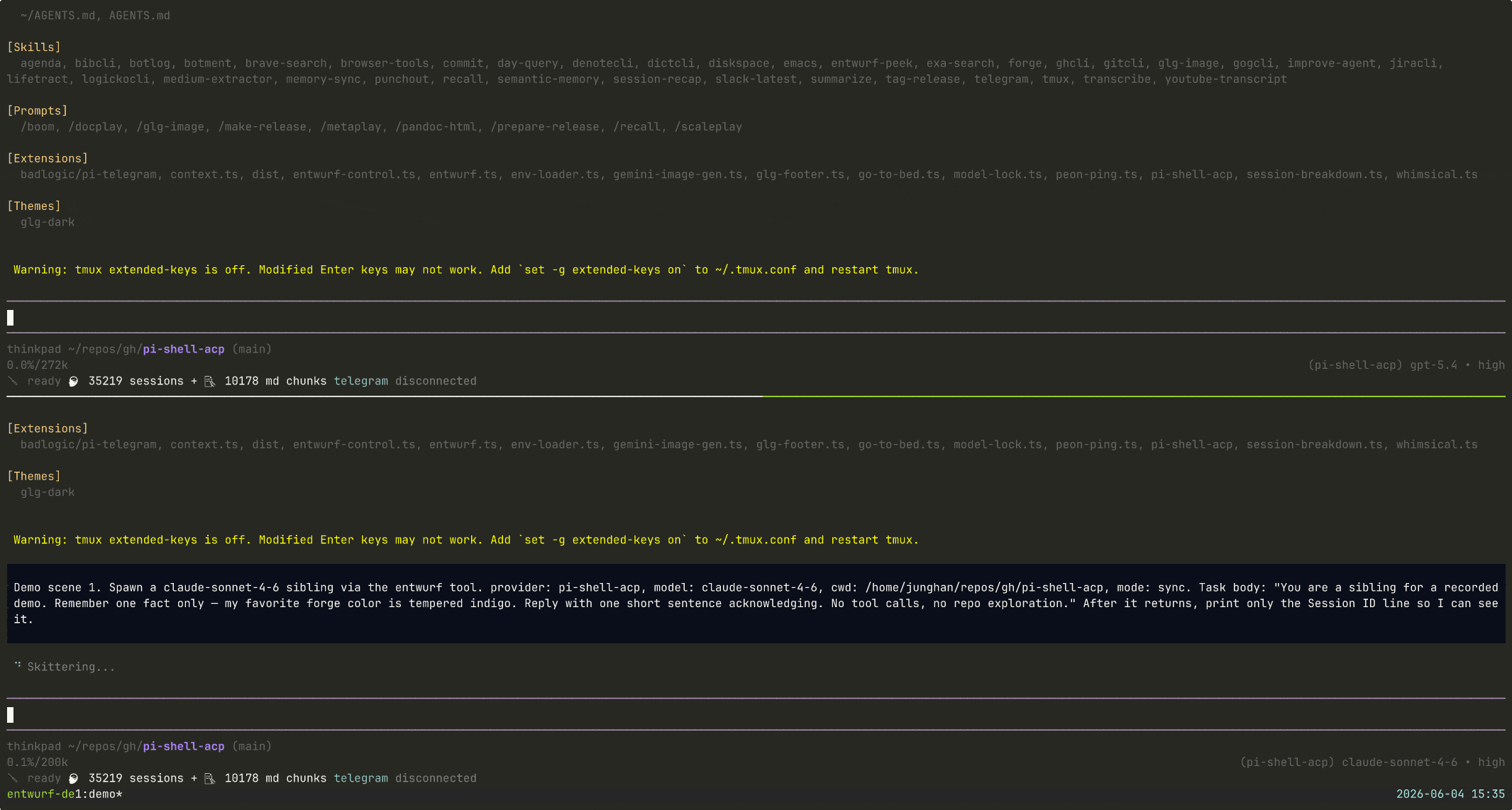

A two-pane recording covers the surface end-to-end — sibling spawn, cross-process MCP resume across a different cwd, and a live peer greeting through entwurf_send:

Live peer messaging (entwurf_send, /entwurf-send, in-process tool) carries a sender envelope { sessionId, agentId, cwd, timestamp } by default; entwurf_self returns the same envelope for the current session. External MCP hosts can call entwurf_send with a marked non-replyable envelope, while entwurf_self remains pi-session-only. wants_reply is an etiquette marker rendered as a (wants reply) badge — not a transport contract, no wait, no polling — and is rejected from non-replyable external senders.

In ACP-backed sessions, agent tools (entwurf, entwurf_resume, entwurf_send, entwurf_peers, entwurf_self) auto-attach through pi-tools-bridge; in native pi sessions, the same capability is available directly through the extension surface. Operator slash commands (/entwurf, /entwurf-status, /entwurf-sessions, /entwurf-send) require --entwurf-control. The spawn target allowlist is pi/entwurf-targets.json.

The human-greeted 담당자 pattern is first-class: the operator opens a pi-shell-acp session in repo B, greets it directly, then passes that sessionId to another session via entwurf_send. Spawned siblings and human-opened peers share the same messaging semantics; only the creation sequence differs.

Asymmetric Mitsein (비대칭 공존) — the cross-harness counterpart. Pi may collaborate with an external interactive coding session (Claude Code, Codex, Gemini CLI used as a human terminal) without spawning it. The two channels are deliberately asymmetric: outbound pi → external rides whatever the operator already uses (tmux send-keys, manual paste, any interactive input path), while inbound external → pi returns through this bridge's entwurf_send. The pi-side sessionId travels inside the task instruction itself, so no second harness, no control daemon, and no transcript scraping are introduced. This is a workflow pattern, not a product surface — the bridge stays thin; the asymmetry is an honest acknowledgment of the limit, not a defect.

After a session is anchored, pi-shell-acp locks its model identity: switches that touch pi-shell-acp are reverted; native-to-native and pre-turn selection remain free. ensureBridgeSession refuses direct reuse-path mismatches before backend handoff.

Reproduce + debug: demo/README.md.

Context carriers

System / developer carriers and rich pi context are separate.

The carrier holds an optional short operator engraving from prompts/engraving.md; empty or missing is fine. Template variables: {{backend}}, {{mcp_servers}}. A/B with PI_SHELL_ACP_ENGRAVING_PATH=/path/to/alt.md. Do not put AGENTS.md, bridge narrative, or tool catalogs here — large Claude carriers can route OAuth sessions to metered "extra usage" billing.

Bridge identity, pi context, ~/AGENTS.md, cwd/AGENTS.md, and date/cwd ride a one-shot first-user prepend (pi-context-augment.ts). Entwurf prompts already carry cwd/AGENTS.md inside <project-context ...>; the augment removes that duplicate. The augment describes capabilities, but the actual callable schema remains source of truth — read vs Read vs exec_command, MCP only when schema-visible.

Compaction policy

pi-shell-acp does not implement compaction. When a backend compacts natively, the pi session and mapping survive that.

Pi-side JSONL compaction is blocked by default — session_before_compact returns {cancel: true} because pi-side summary does not reduce the backend transcript. Opt back in only with PI_SHELL_ACP_ALLOW_PI_COMPACTION=1.

Backend-native compaction is always allowed. The bridge does not surface backend-specific compaction knobs; operators who need to alter a backend's auto-compaction configure that backend through its own native interface.

The legacy single knob PI_SHELL_ACP_ALLOW_COMPACTION is rejected at spawn intent with a next-action message pointing at PI_SHELL_ACP_ALLOW_PI_COMPACTION.

The footer uses ACP usage_update.used / size (backend prompt/tools/cache/session included) with [pi-shell-acp:usage] ... diagnostics. Near limit, choose a visible action: clear, open a new session with a different model, or let the backend compact on its own.

Identity-isolation env (CLAUDE_CONFIG_DIR, CODEX_HOME, CODEX_SQLITE_HOME, GEMINI_CLI_HOME, GEMINI_SYSTEM_MD) is unrelated to compaction and ships unconditionally.

Verification: ./run.sh smoke-compaction-policy (deterministic). LIVE=1 ./run.sh smoke-compaction-policy adds backend-owned continuation probes: Claude and Codex carry release evidence for explicit / organic backend compaction, while Gemini is recorded as an honest ACP asymmetry because its native CLI /compress is not exposed as an ACP command. Probe outcomes live in demo/compaction-policy-smoke/README.md, with the release baseline and verification framing in BASELINE.md and VERIFY.md; the probe is not a product surface (no user-facing /acp-compact).

What this repo owns, and does not

Owns: provider registration (pi-shell-acp/...), ACP subprocess lifecycle + resume > load > new, prompt forwarding + ACP event mapping, the bridge surface that exposes pi capabilities such as entwurf to ACP-backed sessions, pi-facing MCP injection via piShellAcpProvider.mcpServers, and bridge-local cleanup and diagnostics.

Does not: reconstruct full history, hydrate backend transcripts into pi history, emulate Claude Code or Codex, run broad multi-agent orchestration (entwurf is narrow, registry-gated, identity-locked), or run a second session model competing with pi.

Only pi:<sessionId> mappings are persisted (~/.pi/agent/cache/pi-shell-acp/sessions/) — enough to re-attach pi to the same remote ACP session, never enough to act as a second harness. Backend stores (~/.claude/, ~/.codex/, ~/.gemini/) are interoperability side effects, not authority.

This repo also doubles as the maintainer's working laboratory for agent-harness boundaries — new workflow patterns (e.g. Asymmetric Mitsein) land here first as low-level instruments, before crystallizing into invariants or graduating into more polished surfaces elsewhere.

Verification surfaces

• VERIFY.md — agent-driven. One ACP-bridged identity runs the script against another and records what it sees. Carries the Evidence Levels L0–L5 rung ladder and the Claims Ledger so each claim is parked at the rung it has actually reached.
• BASELINE.md — operator-driven. The maintainer runs the interview directly (no agent in the verifier seat) and the result is recorded.

Use both. Either one alone leaves a blind spot the other closes.

References

• File map + code-level invariants: AGENTS.md
• Current priority + open decisions: NEXT.md
• Release record: CHANGELOG.md
• xenodium/agent-shell — Emacs ACP client, resume > load > new idea origin
• agentclientprotocol/claude-agent-acp — canonical ACP server for Claude Code
• agent-config — real consumer repo

License

MIT
