@leo-alvarenga/pi-zen-frame

A pi-coding-agent extension that gives the TUI editor a clean, minimalist layout with customizable status indicators and frames.

Features

• Clean Frame: Clean editor frame with status segments rendered below the editor

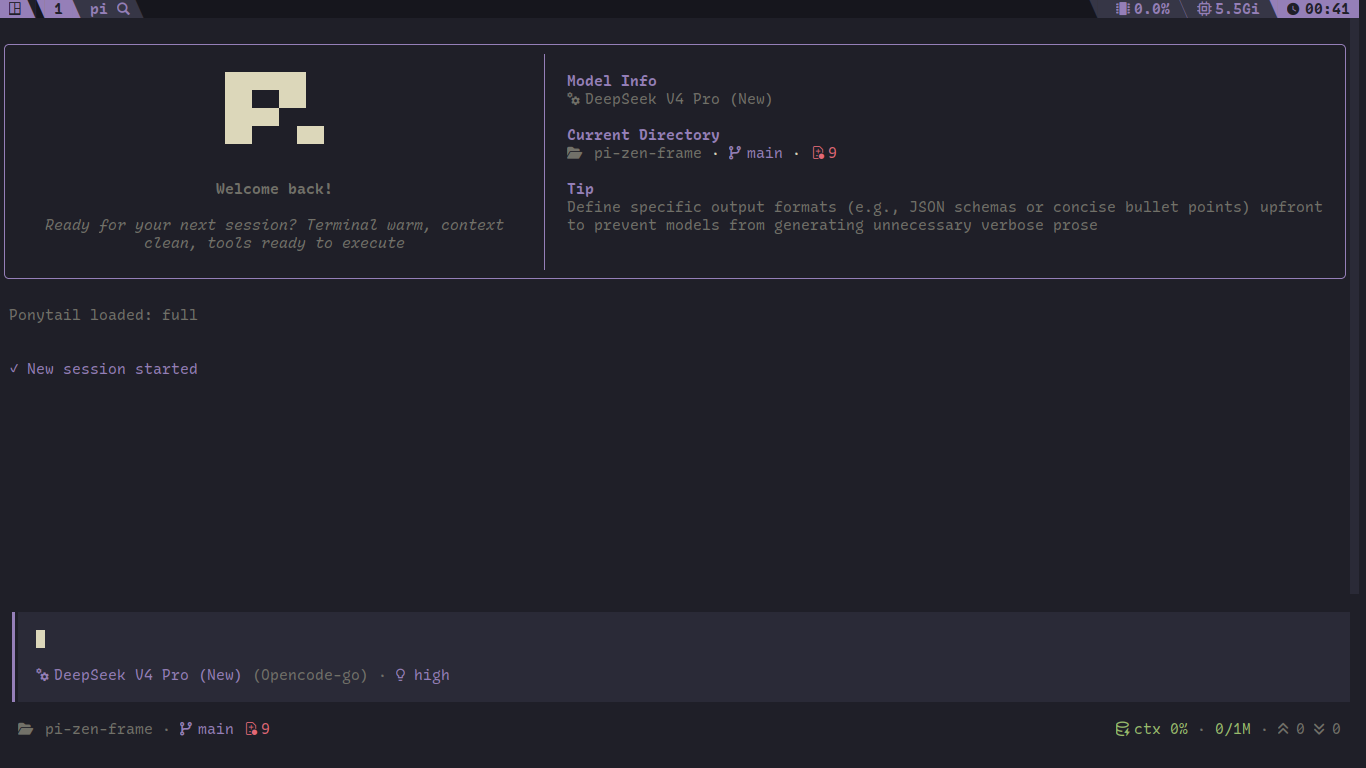

• Header Box: Optional welcome panel with a logo and "Welcome back!" heading, model name, current working directory, Git status, and a random tip
• Working Messages: Randomized loading status messages during response generation, updated on a configurable timer
• Native Theme Support: Uses pi ThemeColor tokens to automatically align with your active theme
• Command Palette: alt+p opens a filterable list of built-in and registered slash commands

---

Installation

Run the following command:

pi install npm:@leo-alvarenga/pi-zen-frame

Or add pi-zen-frame to your pi packages list in ~/.pi/agent/settings.json:

{
  "packages": ["npm:@leo-alvarenga/pi-zen-frame"],
}

Then, restart pi or run /reload in the console.

---

Configuration

Configuration is loaded from ~/.pi/agent/pi-zen-frame.json. All properties are optional.

{
  // Fallback accent color for frame border and active segments
  "accentColor": "accent",

  // Editor-frame renderer by registered name (built-in: "blocky", "minimalist")
  "editorFrame": "blocky",

  "header": {
    // Welcome panel is opt-in (default: false)
    "enable": false,
    // Header renderer by registered name (built-in: "basic")
    "type": "basic",
  },

  "frame": {
    "enable": true,

    // Minimum terminal width required to render the border frame
    "minWidth": 20,

    // Toggle individual status segments
    "showCwd": true,
    "showModel": true,
    "showContext": true,
    "showThinking": true,
    "showSpinner": false,
    "showAgentMode": true,
  },

  // Randomized status messages shown while streaming responses
  "workingMessage": {
    "enable": true,
    "intervalMs": 3000,
    // Omit to use the built-in message pool
    "messages": [
      "Exploring the seas",
      "Tinkering with strange objects",
      "Analyzing patterns",
    ],
  },
}

---

Structure & Status Segments

The editor frame shows status indicators in two rows below the editor:

Location	Segment	Description
Editor band (left)	agent mode	Active agent indicator pill from pi-agent-manager
	model	Active model name and provider
	reasoning	Current reasoning effort level, tinted with pi thinking tokens
	spinner	Active phase indicator (thinking, outputting, toolcall, exec); replaces the row while streaming when showSpinner is enabled (default off)
Footer (left)	cwd	Shortened path, active Git branch, and uncommitted file counts
Footer (right)	ctx	Context usage percentage and token counts with color alerts

---

Commands & Keybindings

• Command Palette: alt+p — filter and insert built-in or registered slash commands.
• Palette Keys: ↑/↓ navigate, Enter inserts the command, Esc closes.

To rebind or disable the hotkey, update ~/.pi/agent/keybindings.json:

{
  "piZenFrame.palette": "alt+p", // Set to [] to disable the shortcut
}

Run /reload after modifying your keybindings.

---

Directory Layout

extensions/
├── index.ts            # Extension entry point: config initialization and events
├── config/             # Types, defaults, and settings normalization
├── components/         # Status segments, header, and frame layout helpers
├── editor/             # Editor-frame renderers (blocky / minimalist) + palette
├── renderers/          # Renderer registry + swap-in API (blocky / basic)
└── utils/              # Helpers for Git status, paths, agent modes, and token usage
