pi-navigator

Read-only project file navigator for pi. Opens a centered overlay inside a running pi session with a file tree, git state, and a syntax-highlighted viewer. No file editing, no runtime dependencies; images optionally render natively (kitty/iTerm2) or through a user-installed chafa (see Images).

Install

pi install npm:@lordekeen/pi-navigator   # or: pi install git:github.com/lordekeen/pi-navigator

For local development, place the directory in a pi extension location and pi discovers it:

• Global: ~/.pi/agent/extensions/pi-navigator/ (or any directory containing index.ts)
• Project: .pi/extensions/pi-navigator/

Then start pi and run /navigator.

Does pi-navigator fit your setup? Read more

Configuration

Settings live in ~/.pi/agent/pi-navigator.json. All fields are optional; missing sections fall back to defaults. The canonical file shape is:

{
  "version": 1,
  "images": { "mode": "off" },
  "icons":  { "enabled": false },
  "viewer": { "wrap": false, "markdown": "code" },
  "tree":   { "showHidden": false, "respectGitignore": true },
  "layout": { "default": "files-git-viewer" }
}

Environment variables override the file, and launcher flags override both (precedence: defaults ← file ← env ← flags):

Edit either the file or the variables in your shell profile (e.g. export PI_NAV_ICONS=1 in ~/.zshrc) before launching pi, or pass inline: PI_NAV_ICONS=1 pi.

Launcher flags are the only layer you can discover from the terminal — they are listed in pi --help (env vars never are) — and they apply to that run only:

/navigator set <field> <value> writes a single field without opening the menu, through the same registry and validator the menu uses — so it works where the menu cannot mount (-p / print and json mode) and from scripts that provision a later session. Field ids are the ones in the table above: /navigator set images.mode native, /navigator set viewer.wrap on, /navigator set layout.default git-viewer. Booleans take on/off; enums take the listed tokens. A bad field or value warns with a one-line usage and writes nothing. If a flag or environment variable will shadow the field you just wrote, the notice says so — the file is updated, but the more explicit layer still wins for the running session.

In -p / print and json mode the UI commands (/navigator, /navigator settings) refuse silently: the host's notify is a no-op there, so an extension has no channel to report through, and json mode's stdout is contractually a single machine-readable document. That is a deliberate, documented deviation rather than an oversight — set is the path those modes can use, and it needs no UI at all.

/navigator settings opens a settings menu (interactive TUI) over the same fields — Enter/Space cycles a row into an in-memory draft; Ctrl+S saves and closes, writing all changes atomically in one shot; Esc discards the draft without writing. Rows whose runtime requirement is missing carry a note (e.g. images.mode notes chafa + pi-chafa). The menu follows the host settings-panel standard: it docks above the message input, uses the host list roles (bright labels, muted values), and is framed by full-width rules like pi's own /settings; mouse wheel and click work in fullscreen mode. Rows shadowed by an environment variable are annotated (— overridden by PI_NAV_IMAGES (env wins)); editing one still writes the file, and the env value stays effective until it is unset. Settings are read once per /navigator invocation, so changes apply the next time /navigator opens — there is nothing applied live mid-session.

Icons depend on a terminal Nerd Font — without one, glyphs render as placeholder boxes (tofu). The overlay shows a one-time, non-blocking hint when icons are on. The git pane, commit-family view, and viewer follow the active pi theme with no hardcoded colors.

Usage

/navigator              open the overlay (layout.default setting)
/navigator all          open the files + git + viewer overlay (default layout)
/navigator files        open the files + viewer overlay
/navigator git          open the git + viewer overlay
/navigator settings     open the settings menu (interactive TUI)
/navigator set          write one config value (no UI at all)
/navigator help         show this command list

/navigator <anything else> warns and shows the help list. Surplus arguments after a known subcommand get a one-line usage notice instead, with no help appended (Issue #134). settings requires the interactive TUI: it warns in RPC and refuses silently in print/json (where the host notify is a no-op). set needs no UI at all and works in every mode (see Configuration).

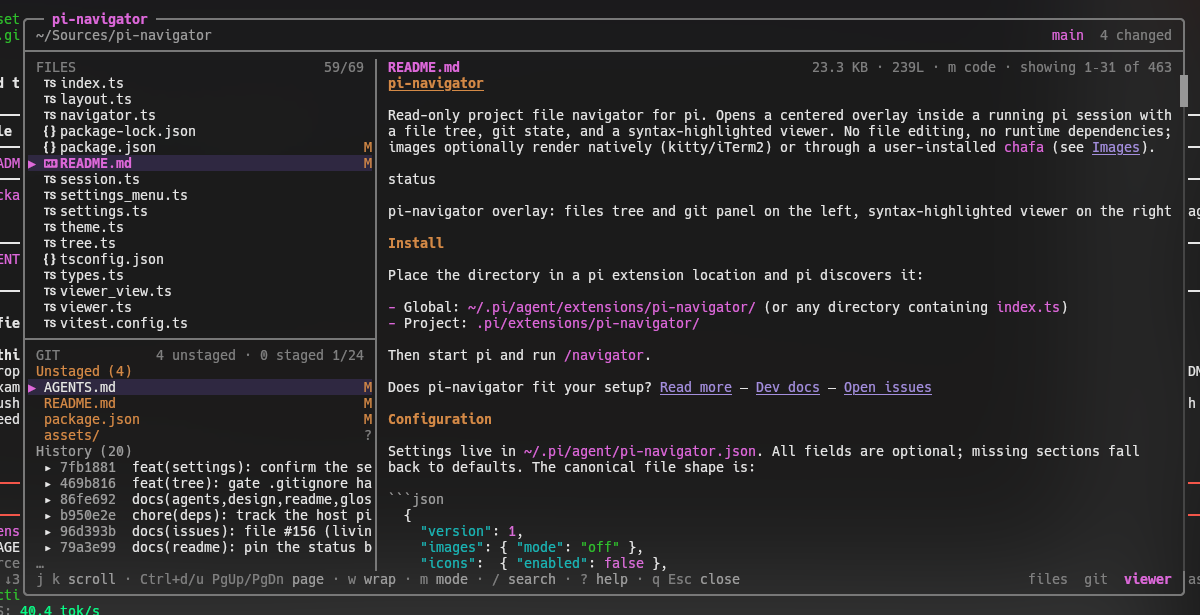

Layout: the left column holds the files tree and the git panel (files-git-viewer, the default), the files tree alone (files-viewer), or the git panel alone (git-viewer); the file viewer sits on the right in every layout, and contextual key hints live in the footer — typed key/label pairs (dim keys, muted labels, joined by ·), with the close pair advertising the cancel key (q Esc close). The frame is rounded (╭ ╮ ╰ ╯) with the product name in a pill on the top border, the row below is a path/git subtitle, and an overflowing viewer shows a showing 1–25 of 120 readout in its header plus a proportional scrollbar in the frame's right border. A layout is chosen when the overlay opens — by the direct command, or by layout.default/PI_NAV_LAYOUT for bare /navigator — and is fixed for that overlay's lifetime; it never switches mid-session and the direct commands never write settings. A stylized example at 100×28 (one of the render suite's sizes; colors omitted):

╭── pi-navigator ──────────────────────────────────────────────────────────────────────────────────╮
│ ~/project                                                                  main  ↑2 ↓1 4 changed │
├──────────────────────────────────────────────────────────────────────────────────────────────────┤
│ FILES                   1/8 │ src/main.ts                    2.1 KB · 120L · showing 1–17 of 120 │
│▶ ▾ docs                     │   1 │ // pi-navigator overlay entry                                █
│    ▸ design                 │   2 │ import { loadTree } from "./utils";                          █
│  ▾ src                     •│   3 │                                                              │
│    ▸ lib                    │   4 │ export function main(): void {                               │
│    main.ts                 M│   5 │   const tree = loadTree(process.cwd());                      │
│    utils.ts                ?│   6 │   console.log(tree.length, "entries");                       │
│  package.json               │   7 │ }                                                            │
│  README.md                  │   8 │                                                              │
├─────────────────────────────┤   9 │ // ...                                                       │
│ GIT   2 unstaged · 2 staged │  10 │ // line 10                                                   │
│ Unstaged (2)                │  11 │ // line 11                                                   │
│▶ src/main.ts               M│  12 │ // line 12                                                   │
│  docs/design/overview.md   M│  13 │ // line 13                                                   │
│ Staged (2)                  │  14 │ // line 14                                                   │
│  src/utils.ts              A│  15 │ // line 15                                                   │
│  package.json              M│  16 │ // line 16                                                   │
│ …                           │  17 │ // line 17                                                   │
│ j k move · Enter open · g G Home/End jump · Tab pane · / filter · . hidden    files  git  viewer │
╰──────────────────────────────────────────────────────────────────────────────────────────────────╯

Keys

Esc precedence in one line: filter, then search, then close. Search mode adds ↑ ↓ / Ctrl+n Ctrl+p to cycle matches and Enter to apply; the ? modal lists the full set including these aliases.

Behavior notes

• Launch mechanism: the extension is launched via the /navigator command, avoiding keybinding conflicts with pi's built-in shortcuts (such as ctrl+n / app.session.toggleNamedFilter).

• Syntax highlighting uses pi's own highlightCode and getLanguageFromPath, so colors follow the active theme and no tools like bat are needed.

• Tree source is hybrid: inside a repository it lists tracked plus untracked non-ignored files; ignored untracked paths stay hidden by default (git's full ignore stack: .gitignore, nested .gitignore, .git/info/exclude, the global excludes file), and tree.respectGitignore: false shows them instead — ignored files with a dim ! badge and ignored directories expandable. Tracked files matched by an ignore pattern always remain visible. Without git, or in a repository with nothing to list yet (a fresh git init), the tree falls back to an async filesystem walk with a static ignore list, dot entries included but hidden by default — inside a repository that fallback is still filtered through git's ignore rules when the setting is on, while with no git binary or repository the rules cannot be resolved, so the setting is a documented no-op there (a .gitignore parser remains out of scope).

• Git panel: branch or detached HEAD, ahead and behind counters, unstaged and staged lists, last 20 commits. All git calls are async with a 3 s timeout; the panel shows a single explanation row when git is missing or the cwd is not a repository, and a dim Clean row when nothing is staged or unstaged. Status and the tracked listing are read with -z, so paths containing spaces, quotes or newlines survive intact.

• Commit rows: Enter opens the commit's diff in the viewer (prefix-styled +/-/@@ lines, a stat summary notice, and a commit <hash> header); l expands one level of its ancestor family (▸/▾ markers), h collapses and steps out to the anchor. Expanding is capped by FAMILY_MAX_DEPTH (a notice tells you when you hit the floor) and FAMILY_MAX_ROWS (a dim … more ancestors hint marks the cut).

• Refresh runs every 3 s while something changes or a key is pressed, backing off to at most 10 s on an idle overlay, plus r, with one refresh in flight at a time: a tick that arrives mid-refresh is dropped. Git state is re-read every tick; the tree is re-collected only when a cheap probe changes — the porcelain-derived signature in git mode, the modification times of the expanded directories in fs mode — and rebuilt only when the path set itself changes, with git codes otherwise stamped in place. Expanded and collapsed directories, top-level ones included, are preserved across rebuilds. Repeated failures notify once per distinct message instead of once per tick.

• Hidden dot entries render dim, and the . toggle is Files-scoped.

• Caps: files over 1 MB are read head-capped at 1 MB; files over 5000 lines within 1 MB are read once, then truncated. Both open truncated with a notice. The truncated view reports the total line count when the whole file was read and it is under 256 KB. Binary files are detected by a NUL byte and shown as a metadata card; images show a metadata card, native terminal graphics or chafa symbol art when the optional image tier is enabled (see Images).

• While filtering or searching, the typed query is echoed with a reverse-video cursor, preceded by the hardware cursor marker while the overlay has focus, so IME composition lands over the right cell.

• Never writes to the workspace. The only mutating operations in the whole extension are clipboard copies for y.

• Minimum terminal size: the overlay asks for 80 columns; below 72 inner columns the left column hides (toggle t); below 40 columns or 8 body rows it renders a compact "terminal too small" notice instead of the frame.

Images (optional)

Image files show a metadata card (name, size, dimensions) by default. Set "images": { "mode": … } in ~/.pi/agent/pi-navigator.json (or PI_NAV_IMAGES) to pick a tier:

One host gate sits above the mode: terminal.showImages: false disables every tier, including chafa and auto.

Native rendering reuses pi-tui's kitty/iTerm2 encoders (pi-navigator emits no protocol bytes of its own, except a one-shot kitty a=q decode query on the first native render of each /navigator open — the terminal's own OK/error reply decides whether native stays enabled for that invocation; OK keeps it, an explicit error degrades images to chafa or the card, and an unanswered query keeps the current behavior) and reads at most 4 MiB per image. The image is bounded by the viewer pane and by pi's terminal.imageWidthCells preference. Fullscreen (tuiMode: fullscreen) supports kitty only — pi-tui disables iTerm2 images there. tmux/screen and terminals without image support (Alacritty, VS Code, Zed, Windows Terminal, JetBrains) keep native off — not even a forced terminal.images or PI_IMAGE_PROTOCOL override re-enables it (issues #070, #100); images degrade to chafa or the card.

chafa knobs (colors, symbols, dither, cellWidth, maxRows, timeout, binaryPath) live in ~/.pi/agent/pi-chafa.json and the CHAFA_* environment variables — read pi-chafa's README for them. The i key toggles between the rendered image and the metadata card in every mode that resolves an available tier; with images off or no capability the key does nothing. Images are user-only: they are never sent to the model. A missing binary, extension, terminal capability, or opt-in always degrades to the metadata card — never an error.

The tiers' design notes are local-only: docs/specs/chafa-image-rendering.md and docs/specs/native-image-rendering.md (gitignored with the rest of docs/).

Development

Files: index.ts (entry, command routing, settings/env loading, session wiring), session.ts (the overlay's data lifecycle: poll/backoff, tree and git reads, viewer cache, image pipeline binding), navigator.ts (overlay component state, caches, input routing, render orchestration), frame.ts / layout.ts / files_view.ts / git_view.ts / viewer_view.ts / help_view.ts (extracted pure view-models — frame composition/assembly, overlay geometry, files rows, git rows, viewer pane, ? modal), tree.ts (tree model, bounded fs walk/entry collection), git.ts (async git access and porcelain parsing), viewer.ts (load caps, highlighting, search, display rows, hardTruncate), diff.ts (v3 diff prefix styler + composer), theme.ts (token mapping), types.ts, constants.ts, env.ts (shared env truth table), icons.ts (Nerd Font glyph map + icon-mode parsing), settings.ts (pi-navigator settings terrain), settings_menu.ts (/navigator settings menu, rendered in the editor area above the input), help.ts (the one keybinding table + /navigator help entry layout), images.ts (pi-chafa detection, chafa probe/sanitize/geometry, native capability ladder + bounded pi-tui native renderer).

Planning documents, specs, and the issue tracker live in the local-only docs/ tree (gitignored, never published) — docs/plans/ (ui-standards-report.md, the superseded pi-navigator-implementation-plan.md, qa-evidence.md), docs/specs/, and docs/issues/ with its central issues_index.md. The throwaway visual mock is mockups/navigator.html (also local-only) — open it in a browser and drive it with the same keymap.

Tooling (enabled — Linux, Node 26, git 2.56)

Dev-only: typescript, @types/node, vitest, and @earendil-works/pi-tui + @earendil-works/pi-coding-agent at ^1.0.3, tracking the host pi 1.0.3 (Issue #157), so the suites exercise the real wrap/width/highlighting implementations. No runtime dependencies, ever — node_modules is dev-only.

• npm run typecheck — tsc --noEmit. moduleResolution: "bundler" rather than the plan's original "NodeNext" because pi loads extensions through jiti, which resolves the code's intentionally extensionless relative imports; NodeNext would demand .js extensions the runtime does not need.
• npm test — 22 vitest suites: porcelain -z parsing plus a real-git scratch-repo integration pass, tree building/fs-walk fixtures (ignores, dot entries, symlink cycles), viewer caps and UTF-8 head decoding, the keymap reducer (escape precedence, focus cycling, copy), settings normalization/loading (PI_NAV_IMAGES + PI_NAV_ICONS truth tables, applyFieldEdit), the settings-menu builder and real-SettingsList integration, the help layout + command-routing + table-drift suites, pi-chafa detection/config/probe/sanitizer/geometry, the native capability ladder and pi-tui encoder suite, the extracted pane view-models (frame geometry, files/git row builders, viewer pane, ? modal) plus the diff styler, theme token map and shared env parser, the notify-once factory, the session lifecycle (poll cadence/backoff, tree stamping, viewer-cache and abort ownership), and render width-safety at 120x36, 100x28 and 80x24 — plus 60/50-column, settings-menu, chafa and native payload cases — including help/filter/search modes and the compact notice.

Test runs must stay green with typecheck and test; the suites have already caught real bugs (a search-highlight crash from inverted theme tokens, a symlink-to-root walk cycle, and footer focus labels truncated off at narrow widths), so they are part of the definition of done, not decoration.
