opl-pi-sht

Cut token cost, run the agent safely, and drop your MCP servers (probably).

A portable collection of various Pi coding agent extensions. Repository directories and config files use opl-; established Pi-facing commands and tool names stay compatible.

BIG A👀️ UPDATE

v0.3.0 - security hardening, fixes, and extension enhancements

• Stronger network protection: opl-browser and opl-webaccess check resolved addresses and redirect destinations, closing hostname and IPv6 policy bypasses. Browser guards also cover page requests, WebSockets and redirected frames. opl-webaccess pins each connection to an approved address, closing DNS rebinding on its fetch path; Chromium's internal DNS resolution remains a documented browser limitation.
• Safer execution and file access: opl-simplebench limits the environment inherited by model-authored verifier code and uses argv-based AWS credential lookup. Guarded git probes in opl-init and opl-footer disable hooks, filesystem monitors and external diff/textconv helpers. Browser screenshots stay within the session project, refuse overwrites and clean up failed captures. Malformed Bash calls are blocked instead of coerced. Screenshot safety, Bash safeguards.
• More useful protection and diagnostics: opl-guardian matches protected paths without blocking harmless text searches, and its malformed-call logs record argument names rather than values, rotate on a byte limit and live in the agent directory. Protected paths.
• Priority runtime fixes: PDF extraction accepts HTTP response buffers; URL fetches decode compressed responses within received and decoded byte limits, follow redirects without buffering their bodies, and clean up sockets on cancellation or timeout. Browser selection follows page identity, so a closed tab cannot silently redirect an action to another document. URL/PDF retrieval.
• Lower token cost and better rendering: opl-modes enforces UTF-8 plan caps including truncation notices; opl-ctxtrim trims known context-mode ctx_* descriptions in Google/Gemini and OpenAI tool formats; opl-webaccess stores full results outside the session and returns bounded previews. Footer rows render only when populated, and branch switches or compaction refresh cached counts, cost and context estimates. Footer behavior.
• More reliable repository context: /init handles special characters in workspace globs, bounds fingerprinting work and requests the supported "minimal" thinking level. Cross-extension state is validated and cleaned up between sessions. Cross-extension seams.
• Organization and convenience: configs consistently resolve from Pi's agent directory, and plans, screenshots and benchmark artifacts use the session directory. The installer supplies sample configs, preserves existing settings and tracks stale extensions for cleanup or retry. npm packages ship sample configs without checkout live configs; obsolete models.json write helpers were removed. Configuration, Checkout installer.
• Stronger release checks: clean installs use a repaired lockfile, release validation runs strict typechecking and the full test suite, and floor CI verifies compatibility against Pi 0.87.0. noUncheckedIndexedAccess remains enabled to catch unsafe array access. Tests.
• Breaking behavior changes: loopback access is now opt-in (allowLoopback: false), and the entire 64:ff9b:1::/48 local-use translation prefix is blocked even with network opt-ins enabled. The well-known 64:ff9b::/96 prefix still follows embedded-IPv4 policy. Stale browser selections now return an error requiring explicit recovery. Network policy, Page selection.
• Added: separate, extensible opl-configurator, and compactions segment in opl-footer.

See CHANGELOG for more details.

Having issues? Opl a ticket.

Validation: all 12 extensions pass loader checks with Pi 1.1.0, locked Pi 1.0.0 and the declared 0.87.0 floor.

Installation

Pi package

Install a versioned release from npm or GitHub. Both ship identical content; pick one source per machine, because Pi treats the npm and Git entries as separate packages and installing both loads every extension twice.

pi install npm:@openlines/opl-pi-sht@<version>
pi install git:github.com/linellazatin/opl-pi-sht@<version.tag>

Omitting the version on the npm source tracks the latest published release; Git refs stay pinned, so move them with pi install ...@v<new>.

Pi installs the package under ~/.pi/agent/npm/node_modules/@openlines/opl-pi-sht (npm) or ~/.pi/agent/git/github.com/linellazatin/opl-pi-sht (Git) and runs root npm install, so opl-webaccess and opl-browser runtime dependencies are available. Pi packages do not install optional extension config files; copy only the configs you need from that checkout's configs/ to ~/.pi/agent/configs/.

opl-browser also needs Chromium once after package installation:

cd ~/.pi/agent/npm/node_modules/@openlines/opl-pi-sht   # or the git checkout path
npx playwright install chromium

Selecting extensions

pi install has no per-extension flag like ./install.sh --only. After installing the package, narrow it in ~/.pi/agent/settings.json using the object form (filters are globs relative to the package root and layer on top of the package manifest):

{
  "packages": [
    {
      "source": "npm:@openlines/opl-pi-sht@0.3.0",
      "extensions": ["extensions/opl-init/index.ts", "extensions/opl-todo/index.ts"]
    }
  ]
}

pi config provides the same control interactively: toggle individual extensions from an installed package without editing globs.

Checkout installer

chmod +x install.sh
./install.sh                         # copy all extensions and configs
./install.sh --link                  # non-destructive symlinks
./install.sh --only opl-init opl-todo
./install.sh --link --only opl-input # installs the UI + /configurator bundle
PI_CODING_AGENT_DIR=/path/to/.pi/agent ./install.sh --link   # PI_AGENT_DIR is a legacy alias

Copy mode refreshes extension directories but keeps a config that already exists in the target; pass --force-configs to replace it. A config comes from configs/<name>.json when the repo carries one, otherwise from the shipped configs/<name>.json.sample, so a fresh clone installs defaults instead of silently installing none. What was installed is recorded in <agent-dir>/extensions/.opl-pi-sht.installed, and a recorded directory that this release no longer ships is pruned on the next run (--no-prune keeps it recorded for later cleanup, and nothing outside the record is ever touched). Failed pruning retains ownership and exits nonzero so the next run can retry; invalid manifest names are ignored. Link mode skips existing destinations without claiming ownership. --only/-o accepts one or more extension names; selecting opl-configurator, opl-footer, opl-input, or opl-modes installs all four: /configurator plus the three extensions that share active-mode state. Use ./install.sh --help for flags. The repository uses standard .json only.

Extensions

Extension	Summary	Commands, tools, and configuration
opl-init	Fingerprinted repository-guide generator with out-of-band model refinement.	/init; no config.
opl-simplebench	Auditable provider-aware model benchmark with JSON artifacts and metrics.	/simplebench, simplebench; supports Ollama, OpenAI-compatible providers, and Bedrock; optional opl-simplebench.json.
opl-webaccess	Search plus readable URL/PDF retrieval with session recovery.	web_search, fetch_content, get_search_content; opl-webaccess.json.
opl-browser	Chromium automation via Playwright with structured extraction of rendered pages; single dispatcher tool replacing the chrome-devtools MCP.	browser (action-based); opl-browser.json.
opl-ctxtrim	Description trimmer specifically for known context-modectx_* tools in Pi outbound requests, across OpenAI, Anthropic, Mistral, Bedrock and Google/Gemini formats. Its allowlist supplies concise replacements for the context-mode bridge's verbose ctx_* descriptions and leaves every other tool byte-for-byte alone (~67-74% smaller tool payloads per measured shape, ~4,700-6,300 tokens/request).	No commands/tools; no config.
opl-guardian	Configurable tool and session safety: dangerous-Bash confirmation, protected paths, destructive-session confirmation, and malformed-call filtering.	No commands/tools;opl-guardian.json.
opl-todo	Branch-aware task tool, overlay, and task list.	todo, /todos; opl-todo.json.
opl-questionnaire	Interactive structured-choice tool.	questionnaire; no config.
opl-input	Configurable replacement editor - enhancedpikit chat-input (because pet is life, and configurable).	/configurator (Input tab); opl-input.json.
opl-modes	Mode, plan, tool-safety, lazy-tool-loading, and active-appearance manager - highly-modified, configrable and enhanced mode-switcher.	/mode, /chat, /plan, /execute, plan_complete, load_tools; opl-modes.json.
opl-footer	Configurable multi-row status footer - highly-specialized, and enhancedpikit footer.	/configurator; opl-footer.json.
opl-configurator	Generic extensible configuration shell with hotkey-selected tabs; each instrumented extension publishes one tab.	/configurator; no config.

What you'll gain

Choose one, some, or all extensions by the outcomes below.

Spend less every session

Trim tool descriptions or withhold unused schemas to reduce the prompt prefix Pi caches across turns:

• opl-ctxtrim shortens descriptions for eleven known context-mode ctx_* tools across Pi provider formats, preserving other tools, conversation content and schema rules. Measured schemas shrink ~67-74%; the Responses saving is roughly 4,700-6,300 tokens/request, estimated from bytes. Scope and provider formats, Measurements.
• opl-modes lazy tools withhold heavy schemas such as subagent, browser and simplebench until load_tools activates them within the current mode's permissions. One measured setup with lazy tools and its MCP adapter disabled saved ~5,000 cold-cache tokens (17.6K to 12.6K). Lazy loading.

Cold prompt-cache write, measured /init session (opl-modes lazy tools + MCP adapter off)

  before   ██████████████████████████████████  17,558 tokens
  after    █████████████████████████            12,625 tokens   (-28%, ~5K every session)

* token numbers grabbed from my personal setup with ~18 extensions

Run the agent without babysitting it

• opl-modes provides read-only chat/plan toolsets, checks each Bash command segment including quoted substitutions, and blocks destructive operations. Custom modes support exploration-to-execution workflows; load_tools cannot exceed their permissions. Plan copies stay within UTF-8 caps including truncation notices: 24 KB in prompts and 4 KB in session entries, with the full file retained. Execute auto-exit requires Pi >=0.87.0. Mode behavior, Plan configuration.
• opl-guardian confirms dangerous Bash commands and destructive session actions, and protects configured file paths through symlink resolution. Without a UI, confirmation-required actions block. Bash path matching avoids harmless text-search matches but remains advisory, not a shell sandbox. Malformed calls are removed before persistence/replay; byte-rotated logs in <agent dir>/guardian-incidents.jsonl record argument names, never values. Guards, Forensics.

Move through work faster

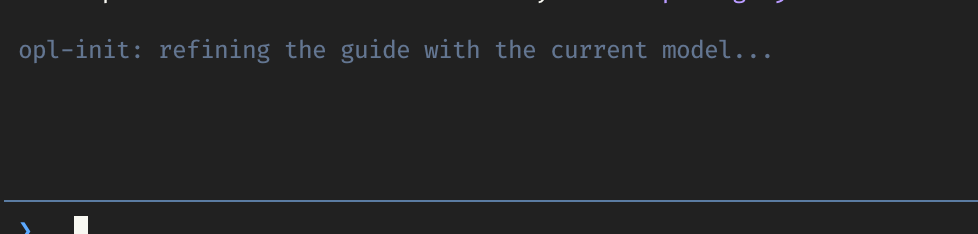

• opl-init crawls, writes and reloads AGENTS.md using one out-of-band refinement call. An unchanged fingerprint skips the model; mid-session requests wait for the agent to settle. No synthetic user messages. Requires Pi >=0.86.0. Workflow.
• opl-browser exposes Chromium navigation, snapshots, rendered Markdown, interaction, screenshots, diagnostics and evaluation through one tool, with paged previews for large results. Address-based guards cover navigation, page requests, WebSockets and redirected frames; private/link-local access is blocked by default, loopback is opt-in, metadata is always blocked and service workers are disabled. PNG/JPG screenshots are contained within the session project and reserved against overwrites. Page actions support index, preserve selection identity and reject stale targets. Features, Network policy and limits.
• opl-webaccess provides search, readable URL/PDF extraction and result recovery. HTTP(S) fetches validate and pin approved addresses at every redirect, block private/link-local hosts by default, make loopback opt-in and always block metadata/unspecified addresses. Compressed responses are decoded within 10 MB received/decoded caps and a 30 s deadline across hops. Sessions keep bounded previews; full results live in a 1 h / 32 MB disk cache. Retrieval and storage, Configuration.
• opl-simplebench compares models using deterministic answers, instruction-following, tool calls and coding tasks. Model-authored verifier code and its children receive an allowlisted environment without provider credentials, tokens or agent paths; this is not filesystem/network isolation. Methodology, Coding safety.
• opl-todo persists branch-aware tasks, reconstructs them from session history and sizes its overlay to the renderer's terminal. Features.
• opl-questionnaire resolves ambiguous choices through an interactive structured questionnaire. Features.

See what the agent is doing

• opl-footer shows model, cost, tokens/cache, git state, agent activity and timing, plus optional Codex subscription quota and OpenRouter key usage. Empty rows disappear; failed segments show [?] without blanking the footer. Branch switches and compaction refresh cached facts, and canonical context usage replaces estimates. Quotas refresh during runs with a 30 s minimum interval; OpenRouter keys/responses are never logged or persisted. Configure the layout with /configurator. Features, Usage segments.
• opl-input provides a configurable editor that reflects the active mode. Configure it through /configurator (Input tab); changes apply after /reload. Editor features.

Fewer moving parts

• opl-browser provides browser automation without a separate chrome-devtools MCP server, reducing server setup and idle schema overhead. Architecture.

Pick your footprint

Selecting opl-configurator, opl-footer, opl-input, or opl-modes installs all four. The configurator carries the /configurator command, and the other three share active-mode state.

Token overhead

Installing extensions adds tool schemas (name + description + JSON parameters) to the resting prompt prefix, which Pi writes once per session and then re-reads cheaply from cache on warm turns. Commands and UI-only extensions add little to nothing. The figures below are calibrated against one tool measured directly in a real session (load_tools = 139 tokens); treat them as ±15%. Per-row estimates sum a little above the measured whole (~2,020 against ~1,916 of tool-schema tokens), so the collective figures below use the measured value.

Per extension (resting prompt prefix)

Command descriptions add roughly another ~120 tokens collectively, and only if your build surfaces them in the prompt or help block.

Collective (full install)

• All tools active (no lazyTools): ~1,958 tool-schema tokens (the ~1,916 counted in a real session, plus the ~42 tokens Phase 6 added to the browser schema for page targeting) + ~101 guidelines + ~120 commands = ~2,180 tokens on every cold prompt-cache write. The per-extension rows above are ±15% estimates of the same set and sum slightly over it.
• With the recommended lazyTools config (withholds browser + simplebench, keeps load_tools): removing browser (~596) and simplebench (~230) drops the resting overhead to ~1,354 tokens (-38%).

Full install, cold prompt prefix impact

  all tools resting     ████████████████████████  ~2,180 tokens
  with lazyTools        ███████████████            ~1,354 tokens   (-38%)
  + opl-ctxtrim (curated ctx_*)  saves 4,700-6,300 tokens/request

The fixed cost of a full install is small and paid once per session, then cached. Two extensions pay it back many times over: opl-ctxtrim removes 4,700-6,300 tokens per request for context-mode users, and opl-modes lazy loading keeps the resting number at ~1,354 instead of ~2,180 while also withholding the heavy subagent family (~5K tokens) when present. For a full install, the overhead is modest and one-time-per-session; with context-mode or heavy tools in play, the collection is strongly token-positive.

Configuration

Copy applicable files from configs/ to ~/.pi/agent/configs/ - or to $PI_CODING_AGENT_DIR/configs/ if you relocated the agent directory, which is where every extension in this collection looks, per call. npm packages include only shipped .json.sample configs, never operator .json files from a checkout. For a Pi package installation, the source directory is ~/.pi/agent/npm/node_modules/@openlines/opl-pi-sht/configs/ (npm) or ~/.pi/agent/git/github.com/linellazatin/opl-pi-sht/configs/ (Git):

• opl-footer.json, opl-input.json, opl-modes.json, opl-todo.json, opl-webaccess.json, opl-guardian.json
• opl-browser has optional configuration (opl-browser.json); all fields default, so it works without any config file.
• opl-simplebench has optional opl-simplebench.json; copy configs/opl-simplebench.json.sample to configure DDGS/SearXNG research and llama metadata endpoints.
• opl-guardian has an optional opl-guardian.json; copy configs/opl-guardian.json.sample and manually migrate any old permission-gate or protected-path settings. It does not load legacy files. Configured permissionGate.patterns replace the defaults, so copied live patterns do not automatically inherit later default-rule updates.
• opl-init, opl-questionnaire and opl-configurator have no external configuration.
• Config files must be valid JSON, with no comments or trailing commas beyond deliberate _comment keys.
• opl-modes owns active-mode appearance. Each mode's appearance.prefix, prefixColor, and borderColor style opl-input; appearance.modeColor styles opl-footer's unified mode label. Renderers retain hardcoded fallbacks.
  • opl-modes.bashPatterns is the shared read-only Bash policy now applied to every mode by default; a mode overrides it with its own valid safePatterns/destructivePatterns array, an empty array explicitly removes that policy, or unrestrictedBash: true disables both gates. Malformed per-mode arrays retain the existing policy.
  • opl-modes.lazyTools withholds heavy tool schemas (e.g. subagent, browser, simplebench) from the resting prefix and enables them on demand via load_tools, shrinking the per-session prompt-cache write.

See each extension README for commands, behavior, configuration fields, runtime constraints, and architecture.

Runtime requirements

All extensions use Pi's normal extension discovery. Pi installs opl-webaccess extraction dependencies and Playwright automatically when installed as an npm or Git package. For the checkout installer, install nested runtime dependencies before using those extensions:

cd extensions/opl-webaccess
npm install

cd ../opl-browser
npm install
npx playwright install chromium

A Pi package (npm or Git) still needs the one-time npx playwright install chromium command shown above.

opl-simplebench writes a full JSON benchmark artifact in the current Pi session directory (ExtensionContext.cwd). --test-all additionally writes research.md and page.html beside result.json in a result bundle. Without an active session context, artifacts fall back to the harness working directory. /simplebench --sequence[=<name>] runs a named templated multi-run protocol (for example a model warm-up curve) defined in the runSequence.sequences block, with per-iteration tags, optional llama-server/llamagputop metrics, and a configurable pause between iterations; block-level llamaMetrics/pauseMs are defaults a profile can override. Copy configs/opl-simplebench.json.sample to ~/.pi/agent/configs/opl-simplebench.json to configure DDGS/SearXNG research, optional llama-server/llamagputop metadata endpoints, and the run sequence. Use /simplebench --no-artifact or simplebench({ no_artifact: true }) when responses must not be written to disk. Provider credentials remain outside tracked configuration; configure them through Pi provider settings, environment variables, or Pi authentication.

Tests

npm test

npm run test:shared runs the cross-extension checks: agent-directory resolution, parity of the duplicated host and git guards, installer, package metadata, and the globalThis seams between opl-modes, opl-footer, opl-input and opl-configurator. npm run typecheck runs tsc in strict mode over all 90 extension sources and is separate from npm test. Release validation uses npm ci, strict typechecking and the full suite; package tests exercise npm packing to exclude live configs. Run one extension suite with npm run test:opl-<name> for browser, configurator, footer, guardian, init, input, modes, questionnaire, todo, webaccess, simplebench, or ctxtrim. npm run test:pi-host uses the Pi build this machine actually runs (the installed managed release, falling back to the >=0.87.0 devDependency when none is present) and its real extension loader to load every entrypoint and assert no loader errors. Every helper, functional, and selected-entrypoint smoke check uses Bun's named-test reporter; output includes per-test status, timings, and pass/fail totals. Functional tests cover deterministic helpers where practical; smoke tests bundle entrypoints and parse config. They do not test live TUI behavior, provider credentials, network access, or PDF extraction.

For agents/models testing extensions in a running Pi session, follow the live-test instructions: one extension per phase, safe tool probes, operator-assisted UI checks, and separate reporting of live observations, automated coverage, and unverified behavior.
