pi-mindplace

"I walk into my mind place. The codebase is organized. Every function has its place."

Sherlock's Mind Place for your codebase. A pi extension that builds a queryable knowledge graph from your source code using tree-sitter AST parsing. Every function, class, and module becomes a node; calls, imports, and inheritance become edges. Query the graph in natural language instead of re-reading files, saving tokens on every session.

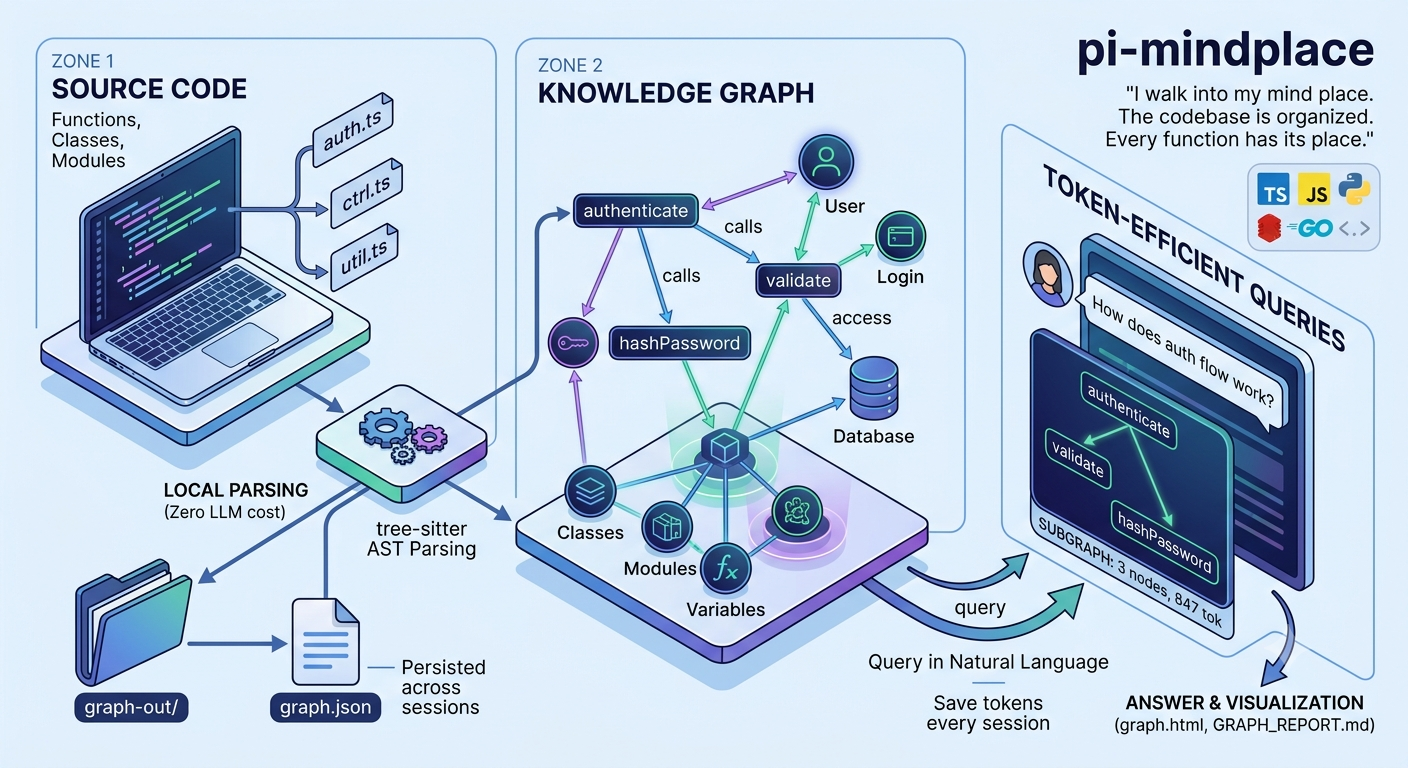

How it works

1. mindplace_build parses your source files locally with tree-sitter (zero LLM cost), extracting functions, classes, imports, and call relationships into a knowledge graph
2. mindplace_query uses TF-IDF scoring and BFS traversal to find the most relevant subgraph within your token budget
3. mindplace_explain drills into a single entity and shows all its connections

Token savings mechanism

When graph-out/graph.json exists, the extension injects graph-first instructions into pi's system prompt. The agent follows a 3-layer query rule:

1. First: use mindplace_query to understand code structure (cheap subgraph)
2. Second: use mindplace_explain for specific entities
3. Third: only read raw files when editing or when the graph doesn't have the answer

This mirrors graphify's PreToolUse hook but adapted to pi's extension model via before_agent_start. The graph is built once (one-time token cost) and every subsequent codebase question is answered from the graph instead of re-reading files.

Supported languages

JavaScript, TypeScript, Python, Go, Java, Rust, C++, Ruby, Kotlin, Scala, Bash, JSON

Install

pi install npm:@patimweb/pi-mindplace

Or for local development:

pi -e /path/to/pi-mindplace/index.ts

Requirements: Node.js 26+, tree-sitter (auto-installed as dependency).

Usage

Build the mind place

mindplace_build

Scans all supported files in the current directory and creates graph-out/ with:

File	Description
graph.json	The full knowledge graph, queryable across sessions
GRAPH_REPORT.md	Audit report with god nodes, communities, suggested questions
graph.html	Interactive D3.js visualization (open in browser)
cache/	SHA256 cache for incremental rebuilds

Options:

mindplace_build path="./src"              # scan specific directory
mindplace_build force=true                # force rebuild ignoring cache
mindplace_build update=true               # incremental: only re-extract changed files
mindplace_build directed=true             # preserve edge direction
mindplace_build noViz=true                # skip HTML visualization
mindplace_build noReport=true             # skip report generation

Query the graph

mindplace_query question="How does authentication flow work?" budget=4000

Returns a scoped subgraph of relevant nodes and their relationships, formatted as markdown.

Explain a node

mindplace_explain name="authenticateUser"

Shows detailed info about a specific entity: where it's defined, what it connects to, and what calls it.

Command shortcuts

The /mindplace command provides quick access:

/mindplace              # show status
/mindplace "auth flow"  # query shortcut
/mindplace build        # rebuild

Architecture

pi-mindplace/
+-- index.ts                  Extension entry point + token savings hooks
+-- src/
|   +-- types.ts              Core data interfaces and language support map
|   +-- detect.ts             File scanner and language detection
|   +-- extract.ts            tree-sitter AST extraction with SHA256 caching
|   +-- graph.ts              KnowledgeGraph class (PageRank, Louvain, directed mode)
|   +-- query.ts              TF-IDF scorer + BFS/DFS traversal with token budget
|   +-- report.ts             GRAPH_REPORT.md generator
|   +-- viz.ts                D3.js standalone graph.html generator
|   +-- tools/
|       +-- mindplace-build.ts
|       +-- mindplace-query.ts
|       +-- mindplace-explain.ts
+-- tests/
    +-- detect.test.ts
    +-- extract.test.ts
    +-- graph.test.ts
    +-- query.test.ts
    +-- fixtures/

Design decisions

• Zero Python: pure TypeScript/Node.js, no Python required
• Zero LLM cost for building: tree-sitter AST parsing is deterministic and local
• Minimal dependencies: only tree-sitter and language grammars. No numpy, no scikit-learn, no networkx
• PageRank without numpy: pure JS power iteration in ~25 lines
• TF-IDF without scikit-learn: hand-rolled with smoothed IDF and camelCase/snake_case tokenization plus substring matching
• Louvain without networkx: greedy modularity optimization in ~50 lines
• Token-budget-aware: BFS traversal that stops when the budget is exhausted
• Incremental builds: SHA256 content hashing, unchanged files skip re-extraction
• Standalone visualization: D3.js graph.html with search, community coloring, and drag interaction

License

MIT
