pi-droid-styling

Opinionated Pi UI styling extension: compact startup UI, boxed editor, cleaner tool tags, message prefixes, footer stats, and reload-safe render patches.

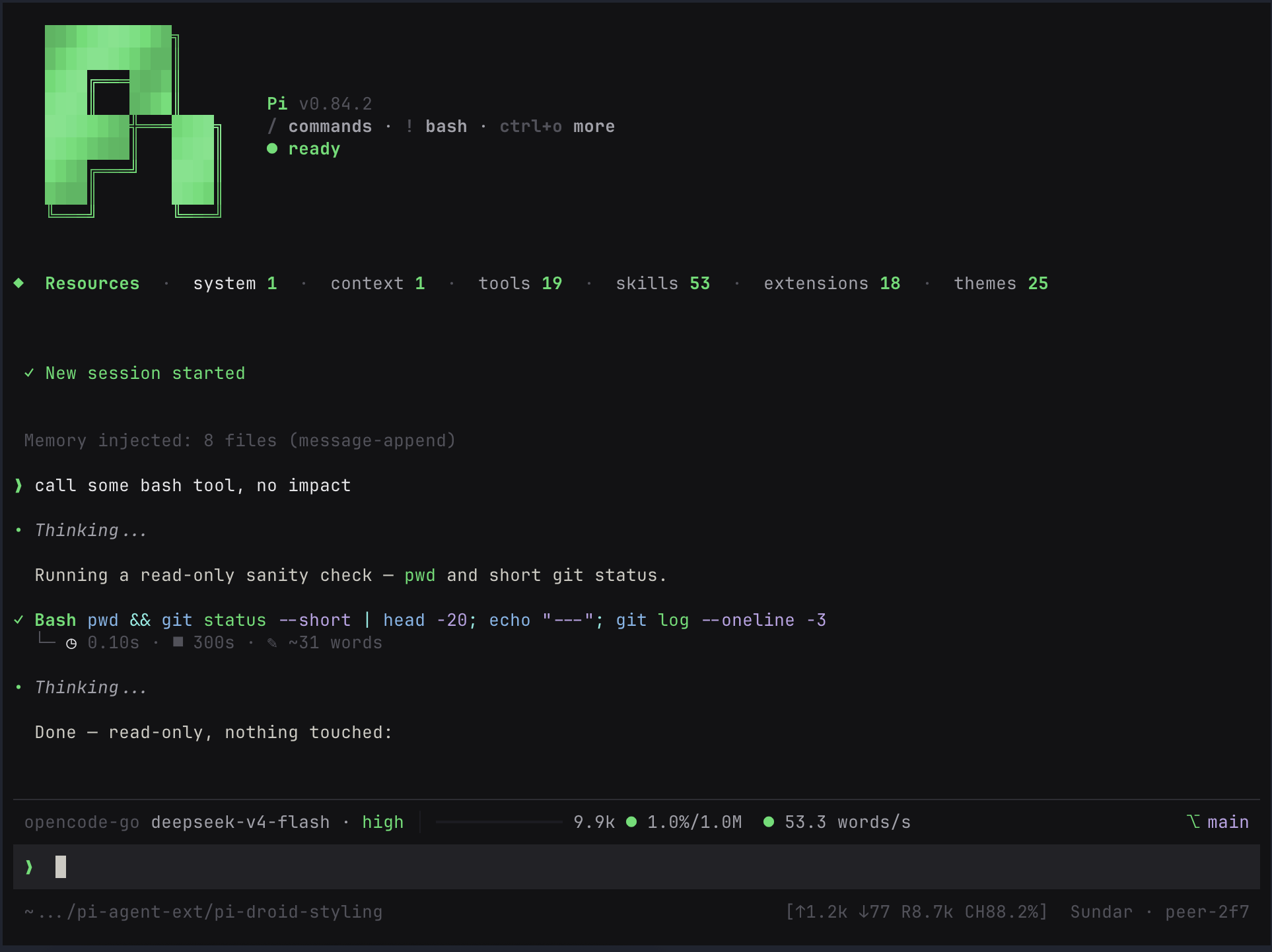

Screenshot

Install

pi install npm:@sting8k/pi-droid-styling

Or install directly from Git:

pi install git:github.com/sting8k/pi-droid-styling

Themes

This extension uses pi-themes as its color layer. Installing pi-droid-styling automatically installs and registers those themes—no second install command is needed.

Already have pi-themes installed separately? Keep it. Existing themes take priority, and pi-droid-styling adds only the bundled themes that are missing—without duplicate-theme conflicts.

To install only the theme collection without this styling extension:

pi install git:github.com/sting8k/pi-themes

Features

Look and feel

• A cleaner Pi, instantly. Compact startup, a focused input editor, tidier conversations, collapsed tool output that still peeks at the live thinking tail, and a footer that tracks your session.
• Make it yours. Two conversation layouts, three prompt styles, multiple input frames, and 25 themes included.

Built for the terminal

• Smoother while the model works. Streaming text and fast tool updates are batched into steady frames instead of repainting on every token.
• Stays aligned when you resize. Boxes, labels, and right-aligned status account for terminal escape codes, so they wrap and truncate cleanly.
• Long sessions stay fast. Only the newest part of the chat is rendered, while huge tool results are capped so history does not slow you down.
• Reloads stay clean. UI patches are applied once and removed cleanly, so extension reloads and session switches do not stack layout changes.

Config

Config is stored at ~/.pi/agent/pi-droid-styling.json:

{
  "alwaysExpanded": false,
  "maxExpandedLines": 50,
  "dimToolOutput": false,
  "customWorkingMessage": {
    "working": "Working",
    "thinking": "Thinking",
    "answering": "Answering",
    "running": "Cooking"
  },
  "presentationStyle": "droid",
  "userZoneStyle": "gemini",
  "inputBox": {
    "style": "auto"
  },
  "tasksWidgetStyle": "compact",
  "collapsedThinking": "tail",
  "forceOSC11": false,
  "visibleChatTail": 30
}

Setting	Options	Default	What it does
alwaysExpanded	true, false	false	Open tool output by default. Ctrl+O still toggles it.
maxExpandedLines	0–1000	50	Limit expanded tool output. Use 0 for no limit.
dimToolOutput	true, false	false	Dim tool output so the conversation stands out.
customWorkingMessage	Custom text	See example	Rename the working, thinking, answering, and tool-running labels. You can set only the ones you want to change.
presentationStyle	droid, reasonix	droid	droid keeps cards and tool boxes. reasonix uses a cleaner, compact conversation layout.
userZoneStyle	gemini, droid, cli-dock, nvim	gemini	Choose the look of the prompt, status rows, and footer. nvim is a Neovim-style dock: a lined input plus one statusline bar (thinking-level badge, model, branch, tokens, context %, cache-hit %).
inputBox.style	auto, halfblock, line, solid	auto	Choose the input-box frame. auto uses the best match for the selected user-zone style. Some presets always resolve to a frame outside this list regardless of the setting: cli-dock always renders outline, and droid collapses an explicit line to none.
tasksWidgetStyle	compact, default	compact	Use the one-line tasks widget, or leave the original pi-tasks widget unchanged.
collapsedThinking	tail, label	tail	While thinking is hidden (Ctrl+T), each collapsed thinking row shows the end of the thinking text with a ▸ live marker (· once the run is done). label restores the static label.
forceOSC11	true, false	false	Force terminal background sync on Windows/WSL. Usually leave this off.
visibleChatTail	0 or more	30	Render only the newest N chat items for speed. Use 0 to render everything.

Profiling

Render profiling is disabled by default. To capture render/update/git/sidebar metrics plus memory, CPU delta, and event-loop utilization:

PI_DROID_PROFILE=1 PI_DROID_PROFILE_OUT=/tmp/pi-droid-profile.jsonl pi

Useful environment variables:

• PI_DROID_PROFILE=1 enables profiling.
• PI_DROID_PROFILE_OUT=/path/profile.jsonl writes JSONL output. Use stderr or stdout for stream output.
• PI_DROID_PROFILE_INTERVAL_MS=5000 controls summary cadence.

Synthetic self-check:

npm run profile:render

The synthetic bench exercises footer/editor rendering, render throttle, assistant/tool debounce, and git status refresh. Runtime terminal paint/GPU cost still needs a real Pi TUI capture.

Notes

• Works with the active Pi theme; it paints TUI cells explicitly and uses OSC 11 terminal background sync on non-Windows hosts to cover terminal-owned padding/remainder areas. Windows/WSL/Windows Terminal skip OSC 11 unless forceOSC11 is enabled.

• customWorkingMessage is on by default. Set working, thinking, answering, and running strings to customize the themed loader labels.

• Existing legacy customWorkingMessage: true or false values are normalized back to the default label object.

Credits

The gradient startup header was inspired by EnderLiquid/pi-startup-header.

License

MIT
