pi-agents-tmux

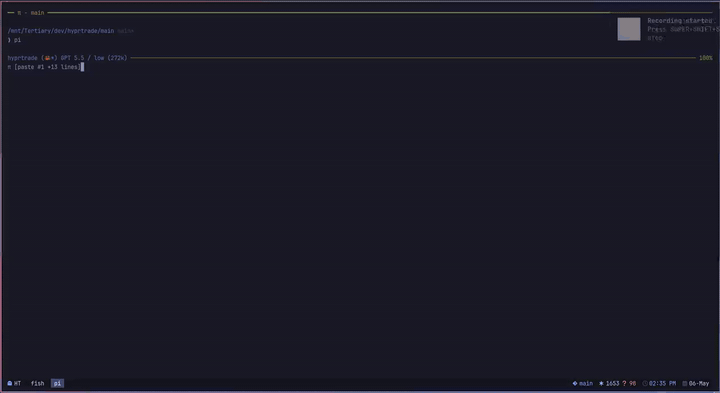

https://github.com/user-attachments/assets/36192e57-a6e4-47f9-b47c-dd26920906ae

Delegate work to specialized agents from a running Pi session. Agents run either as visible persistent tmux panes or resumable background (bg) sessions.

Highlights

• subagent tool delegates one task, parallel tasks, or sequential chains.
• delegate_subagent is a restricted, single-mode variant child agents can call without gaining full orchestration controls. Engineer agents installed by vstack default to allowed-subagents: scout so they can dispatch read-only reconnaissance into a fresh bg lane.
• Agents with pane: true open a visible tmux pane that persists across turns. Other agents run in the background. Spawned Pi sessions use the agent name as the Pi session display name.
• /agents browser lists agents for the selected scope with static detail, Monitor task traces, and one-key launch.
• Monitor groups tasks by session (pane, bg lane, bg one-shot) under expandable Active and Completed sections, with active sessions first and newest invocations first inside each section; repeated same-agent launches get session numbers and task numbers reset per session. Steering/follow-up delivery mode is shown in expanded rows and trace metadata.
• Chat completion rows show actual results, never a repeat of the original request.
• Task detail shows Summary and Completion tabs; Summary contains task metadata, artifacts, and task text, while Completion contains result summary, files changed, and validation.
• Bg one-shot transcripts keep start/end/tool audit events but omit successful streaming message_update snapshots by default to avoid large duplicate JSONL files. Failed runs preserve the latest unfinalized update as buffered: true; set PI_AGENTS_TMUX_TRANSCRIPT_FULL=1 before launching Pi to retain every stream snapshot for debugging.
• needs_completion diagnostics try to attach a best-effort worker cwdSnapshot for Git worktree cwds, so get_subagent_result can show HEAD, dirty status, and last commit without manual shell inspection when the snapshot is available. Dirty scans avoid content filters, reject unsafe tracked paths, enforce the lstat deadline across parent/final probes, and skip tracked paths under symlinked parent directories.
• Dashboard widget shows live state, turns, tokens, and cost for every spawned agent; working agents stay above attention/completed agents, newest invocations lead each bucket, and activity updates do not reshuffle rows. Once you hide it, lifecycle updates do not reopen it until you toggle it back in.
• Grouped completion notifications batch multiple agents finishing together.
• When pi-session-bridge is loaded, spawn/queue/start/steer/completion lifecycle points publish structured agent.* activity broker events without adding chat messages (agent.spawned, agent.task_queued, agent.task_started, agent.steered, agent.task_completed, agent.task_blocked, agent.task_failed, agent.needs_completion, agent.empty_after_compact, agent.pane_cwd_stale).
• taskId retrieval, mid-run steering, and pane stop without losing memory. When pi-session-bridge provides compact input events, trace views humanize steer vs followUp input records instead of showing raw JSON only.
• Stop kills the tmux process but preserves the session — next launch resumes it.
• Bg agents get fresh sessions per call by default; opt into shared memory with an explicit sessionKey. Bg completions are captured from the child process's final assistant output; complete_subagent is reserved for persistent pane/follow-up tasks and is withheld from bg children.
• Bg one-shot children have a process-level deadline (bgTaskTimeoutMs, default 30 minutes). A child that never exits is marked failed with reason: "unresponsive_timeout", its process group is terminated, and the parent parallel queue keeps draining instead of waiting forever.
• Inventory-aware launch guard rejects unknown agent names with the available list.
• Large parallel calls run through a flat worker pool capped at maxConcurrency; callers do not need to split requests. Pane idle waits use wait_for_subagent_idle.
• Persistent panes auto-resume after detected provider rate limits. Scheduling prefers validated structured quota snapshots (Claude usage endpoints, Codex/OpenAI wham/usage fixtures/seams, SDK reset/retry fields) and records resetSource; malformed quota data falls back with sanitized diagnostics, and localized resets <time> prose is only a degraded fallback before plain backoff.
• Periodic pane idle-stall probes cache pi-bridge resolution at extension load. A structured spawn/ENOENT for the expected pi-bridge binary is treated as genuinely missing and skips silently; other ENOENT/spawn failures are written to subagent-diagnostics.jsonl. If initial resolver setup fails, one pi-bridge resolver failed: ... diagnostic is written.

Install

Via npm:

pi install npm:@vanillagreen/pi-agents-tmux

Via vstack:

cargo install --git https://github.com/vanillagreencom/vstack.git vstack
vstack add vanillagreencom/vstack --pi-extension pi-agents-tmux --harness pi -y

Restart Pi after installation.

Persistent panes require running Pi inside tmux.

Commands

Command	Action
/agents	Open the agent browser for both project and user scopes.
/agents project|user|both	Open the browser with an explicit scope.
/agents show <name> [scope]	Inspect an agent.
/agents:start <name>	Start or resume a pane.
/agents:new <name>	Archive the saved session and start fresh.
/agents:resume <name> [latest|archive-file]	Restore an archived pane session.
/agents:send <name> <task>	Queue a task for a persistent pane.
/agents:attach <name>	Focus an existing pane.
/agents:stop <name>	Stop a persistent pane.
/agents status	Show pane status.
/agents collect	Collect completed pane results.
/agents:trace <ref>	Open or show one trace by task id or short id.
/agents:toggle	Toggle the persistent dashboard.

Arguments support autocomplete, including known agent names.

Agent Sources

agentScope controls which directories are considered:

Scope	Directories
user	~/.claude/agents, ~/.pi/agent/agents
project	Nearest <project>/.claude/agents, nearest <project>/.pi/agents
both	User sources, then project sources

When Pi starts from a directory under $HOME, home-level harness directories such as ~/.claude/agents are still user scope, not project scope. Duplicate names resolve in this order: user Claude, user Pi, project Claude, project Pi.

Keyboard shortcuts inside the browser/dashboard popup are documented in the popup's own footer.

Persistent pane agents

Agents with pane: true use a visible tmux pane:

---
name: iced
description: Iced UI specialist
deny-tools: bash
model: openai-codex/gpt-5.5:xhigh
color: cyan
pane: true
---

Frontmatter fields:

Field	Required	Values
name	yes	Unique agent name.
description	yes	Short description shown in /agents and completions.
deny-tools	no	Comma-separated Pi tools to deny. Future parent tools are inherited unless explicitly denied.
allowed-subagents	no	Comma-separated or array of agent names this agent may call via delegate_subagent. Engineer agents installed by vstack default to scout. Set [] to disable delegation. Aliases: allowedSubagents, subagent-agents, subagent_agents.
model	no	Pi model id; shorthands: sonnet, opus*, haiku. Other ids pass through.
pane	no	true for a visible persistent pane; omit for bg.
color	no	Pane badge color: red, green, yellow, blue, magenta, cyan. Aliases: orange, purple/violet, teal.

Everything after the frontmatter is the agent's system prompt.

Pane tasks move through queued → running → completed | blocked | failed. On Linux, before reusing a live pane, subagent verifies the pane process cwd is still present and matches the requested task cwd; stale or mismatched panes return a structured pane-cwd-stale error, publish agent.pane_cwd_stale, and should be recovered with stop_subagent plus a retry using forceSpawn: true. Stop kills the tmux process; the session file is preserved so the next launch resumes memory.

Persistent pane children own their tmux pane and set the pane title to agent:<name>. Background one-shot children keep the same agent identity for authorization but do not update the inherited parent pane title or poll pane inbox files.

See DEVELOPMENT.md for the underlying tool surface (subagent, delegate_subagent, get_subagent_result, steer_subagent, stop_subagent, wait_for_subagent_idle) and activity broker mapping.

Restricted delegation (delegate_subagent)

vstack-installed engineer agents default to denying subagent so they cannot orchestrate fleets, but they still need to spend a fresh context window on reconnaissance work. delegate_subagent is the bridge:

• Only visible to child Pi processes whose PI_SUBAGENT_CHILD_AGENT is set (panes and bg one-shot children both export this for issue #228). Visible pane ownership is separate: only pane launchers export PI_SUBAGENT_CHILD_PANE=1.
• Only the targets listed in the caller agent's allowed-subagents: frontmatter are accepted; missing or unlisted targets fail with an inventory error.
• Single-dispatch only — no tasks, chain, agentScope, sessionKey, forceSpawn, or resumeSession exposure.
• Targets with pane: true are rejected — restricted delegation is bg-only.
• The child receives its own append-system prompt, skills, and a fresh one-shot session; parent conversation is not shared.

vstack defaults for allowed-subagents:

Role	Default
engineer	scout
analyst / reviewer / manager	empty (delegation denied)

Customize per agent in vstack.toml:

[agent-frontmatter.pi]
rust = { allowed-subagents = ["scout"] }
iced = { allowed-subagents = ["scout", "researcher"] }
generalist = { allowed-subagents = [] }   # disable delegation entirely

An explicit empty list overrides the engineer default; the matching agent file is regenerated without allowed-subagents: and gains delegate_subagent back in deny-tools so the child never sees the tool.

Settings

Open /extensions:settings; settings appear under the Agents (tmux) tab.

Project settings in .pi/settings.json apply only after Pi marks the workspace trusted; before trust, vstack Pi extensions read user/global settings only.

Glyph style: each package exposes glyphStyle (unicode default, ascii for terminal-safe chrome). @vanillagreen/pi-tool-renderer.globalGlyphStyleOverride=ascii forces ASCII chrome across vstack Pi extensions while leaving tool/model/user content unchanged.

Execution

There is one execution-concurrency knob — maxConcurrency — and it caps concurrent one-shot/background agent execution in the parallel dispatch queue. Persistent pane agents occupy the queue only until they are launched/enqueued; after that they are not long-running bg workers for this limit. Earlier versions exposed maxParallelTasks as an internal chunk size; that key is now a no-op kept only for settings-file compatibility and safe to delete.

Setting	What it does
Enable agents	Master toggle for the subagent tools, dashboard, and pane helpers.
Max concurrency	Cap on concurrent one-shot/background agent executions in the parallel dispatch queue; persistent pane agents only occupy the queue until launch/enqueue.
Background task timeout	Deadline in milliseconds for bg one-shot child processes. On timeout the child is marked failed with reason: "unresponsive_timeout" and its process group is terminated. Set 0 to disable.
Subagent model source	Use the agent's model: or inherit the parent session model.
Subagent thinking source	Use the model :effort suffix or inherit the parent thinking level.
Reused session budget threshold	Fraction of model context allowed before an explicit sessionKey lane is considered too full.
Reused session budget policy	refuse-and-warn (default) blocks near-limit reused lanes with a warning; warn logs and continues; compact-then-resume archives/truncates the lane before launch.
Reused session context limit tokens	Context limit used by the session-file-size heuristic.

Rendering

Setting	What it does
Show agent dashboard	Render the activity card above the editor. The first agent activity may show it each session; user-hidden state blocks automatic re-open until an explicit toggle/show.
Quiet inline output with dashboard	Keep inline tool output to short crumbs; single bg launches skip the initial task preview.
Dashboard max items	Maximum agent rows shown.
Dashboard collapsed by default	Start collapsed.
Animate spinners	Animate running-agent spinner frames; disable for a static gear icon to reduce terminal flickering.
Tree connector style	unicode or ascii.
Collapsed item count	Items shown in collapsed agent results.

Output

Setting	What it does
Truncate agent results	Apply Pi-sized inline caps to tool output.
Result max bytes	Inline byte cap per agent result.
Result max lines	Inline line cap per agent result.
Preserve full agent output	Save oversized output to the session runtime and include the artifact path.

Persistent panes

Setting	What it does
Completion poll interval	Parent poll rate for pane completion files.
Child inbox poll interval	Child pane poll rate for incoming tasks.
Force session bridge for panes	Load pi-session-bridge in pane launchers so steering keeps working.

Keyboard

Setting	What it does
Dashboard display shortcut	Cycles widget visibility and restores the last visible mode when toggled back in.
Agents popup shortcut	Opens the full /agents browser.
