@wierdbytes/pi-facelift

Cosmetic facelift for built-in pi coding agent tool output.

inspired by pi-pretty

What you get

• read — syntax-highlighted file content with line numbers, plus inline image rendering (Kitty / iTerm2 protocols, with tmux passthrough).

• bash — open-right frame with the duration + status pinned to the bottom border

  Status colour follows the host theme tokens (success while finished, warning while running, error on non-zero / timeout / abort) so the chrome blends with whatever palette the user is running. The exit summary is consistent across statuses (✓ exit 0, ✗ exit N, ⚡ timed out, ⚡ aborted). Duration is shown as 3.3s / 1m3s / 2h5m.

  Frame primitives (top/bottom borders, rail, multi-line title sub-tree) live in @wierdbytes/pi-common/tool-frame and are shared with @wierdbytes/pi-web so every tool that opts into renderShell: "self" looks the same.

• ls — Nerd Font file icons + tree-oriented rendering.

• find / grep — grouped / highlighted rendering on top of pi's built-in tool implementations (no extra search backend, no extra dependencies).

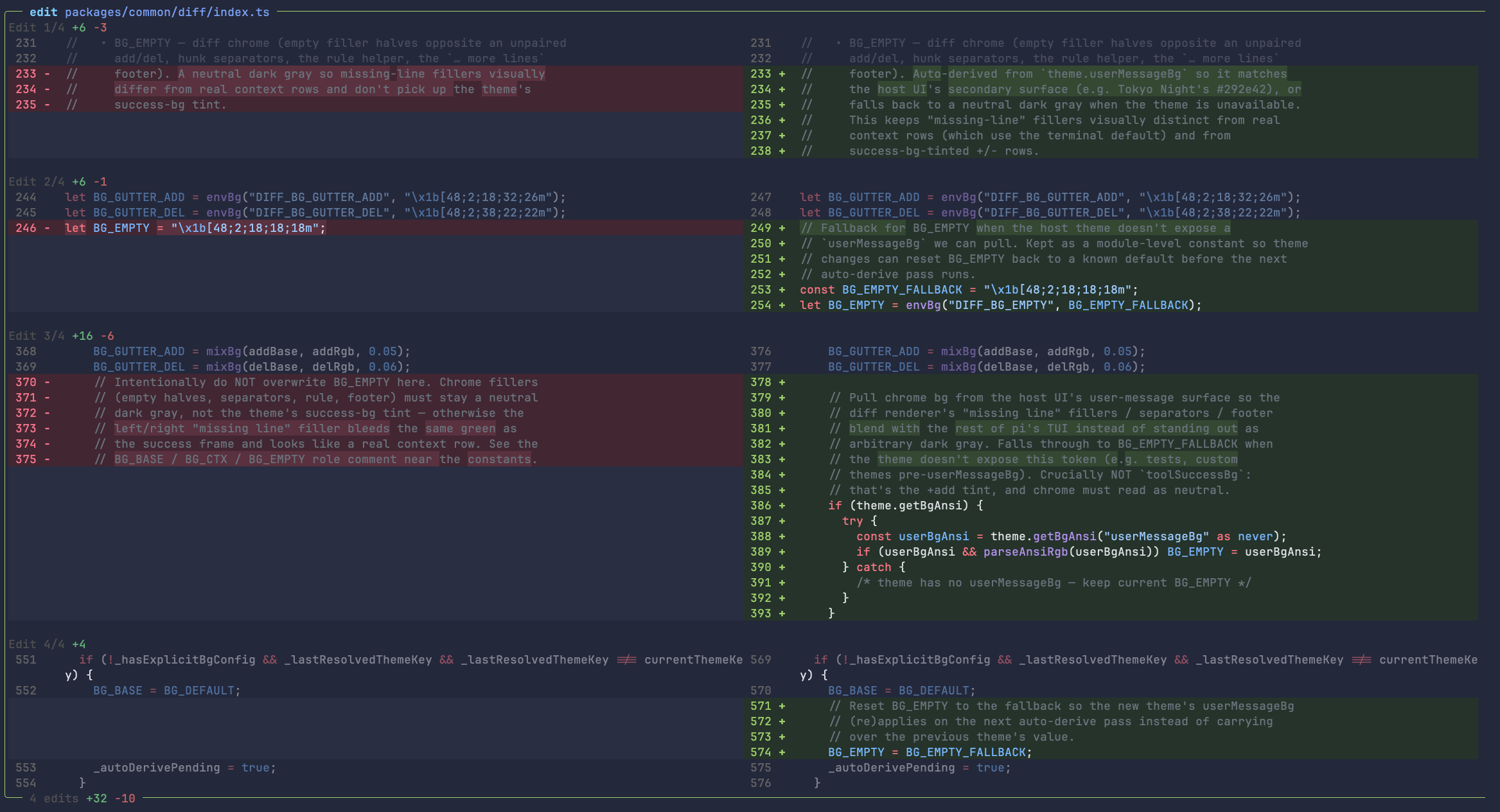

• write / edit — GitHub-style side-by-side diff with syntax highlighting and word-level emphasis (powered by @wierdbytes/pi-common/diff). All edits in one tool call share a single layout by default (split when every diff fits, unified when any would wrap) so Edit 1 split, Edit 2 unified mixed renders don't happen — configurable via diffLayout (see below).

• working timer — while the model streams, the Working... spinner line gains a live ticking timer and a token-rate estimate (Working... 12s · tps: ~756). When the run settles, a muted line is left behind in chat history (a durable custom entry, not sent to the LLM):

  ⏱ worked 45.2s (total: 1m15s) · tps: 756

  • worked — model-only time (request dispatch → response end, so time-to-first-token counts; tool execution is excluded).
  • total — wall-clock time from your prompt to the final response, including retries, tool calls, and all other overhead.
  • tps — output tokens per second over the worked time. The live value is an estimate from streamed deltas (~4 chars ≈ 1 token) and is prefixed with ~; the final value is exact, from the provider's reported usage.output.

  Durations auto-format as 1h12m36s — leading zero parts are dropped (0h12m0s → 12m0s); sub-minute values keep one decimal (45.2s).

  Toggle via showWorkingTime in /facelift.

Install

pi install npm:@wierdbytes/pi-facelift

Terminal support for inline images

Inline image previews work in Ghostty, Kitty, iTerm2, and WezTerm. Inside tmux, pi-facelift uses passthrough escape sequences:

set -g allow-passthrough on

(or run once in a session: tmux set -g allow-passthrough on)

Configuration

/facelift slash command

Run /facelift to open the settings overlay. Bare invocation opens the modal; subcommands print or reset state:

Command	Effect
/facelift	Open the settings overlay.
/facelift status	Print current config + the config-file path.
/facelift reset	Reset every knob to defaults and persist.

The overlay matches the look of /voice, /web, /statusline from the same monorepo. Changes are persisted to disk immediately on each tweak.

Config file

Per-package state lives at:

~/.pi/agent/wierd-facelift/config.json

(or ${PI_AGENT_DIR}/wierd-facelift/config.json if PI_AGENT_DIR is set). The file is seeded on first run and re-sanitised on every load, so hand-edits with typos won't crash the extension — unknown fields fall back to defaults.

Current schema:

{
  // "consistent" (default): one layout per tool call. If every diff
  //   in the call fits without excessive line wrapping → split; else
  //   → unified for all. Avoids `Edit 1 split, Edit 2 unified` mixed
  //   renders in a single edit call.
  // "split"     : always side-by-side, even when long lines wrap.
  // "unified"   : always stacked single-column.
  // "per-edit"  : each diff picks independently (original pi-diff
  //               behaviour; can produce mixed layouts).
  "diffLayout": "consistent",

  // Show a ticking timer in the streaming "Working..." line and persist
  // each run's model time (`worked`, tools excluded) and wall-clock time
  // (`total`, retries + tools + overhead) as a muted line in chat
  // history. Default true.
  "showWorkingTime": true
}

Environment variables (cosmetic knobs)

These stay env-only because they're either rendering tunables (Shiki, icons, image protocols) or boot-time toggles:

Variable	Default	Notes
FACELIFT_THEME	github-dark	Shiki theme. Falls back to ~/.pi/agent/settings.json theme if unset.
FACELIFT_MAX_HL_CHARS	80000	Files larger than this skip syntax highlighting (still get line numbers).
FACELIFT_MAX_PREVIEW_LINES	80	Body preview length for collapsed renderers.
FACELIFT_CACHE_LIMIT	128	Max number of highlighted blocks held in memory.
FACELIFT_ICONS	nerd	Set to none / off to disable Nerd Font icons in ls/find/grep.
FACELIFT_IMAGE_PROTOCOL	auto	Force kitty / iterm2 / none. Auto-detected from $TERM_PROGRAM etc.
DIFF_LAYOUT	(none)	One-shot override for diffLayout on first-run seeding.
FACELIFT_SHOW_WORKING_TIME	true	One-shot override for showWorkingTime on first-run seeding (0/off ⇒ off).

Development

This package lives in the pi-wierd-stuff monorepo.

bun install                        # from the repo root
cd packages/facelift
bun run test                       # 80 tests
bun run test:watch                 # vitest watch mode
bun run demo                       # render every tool block to your terminal

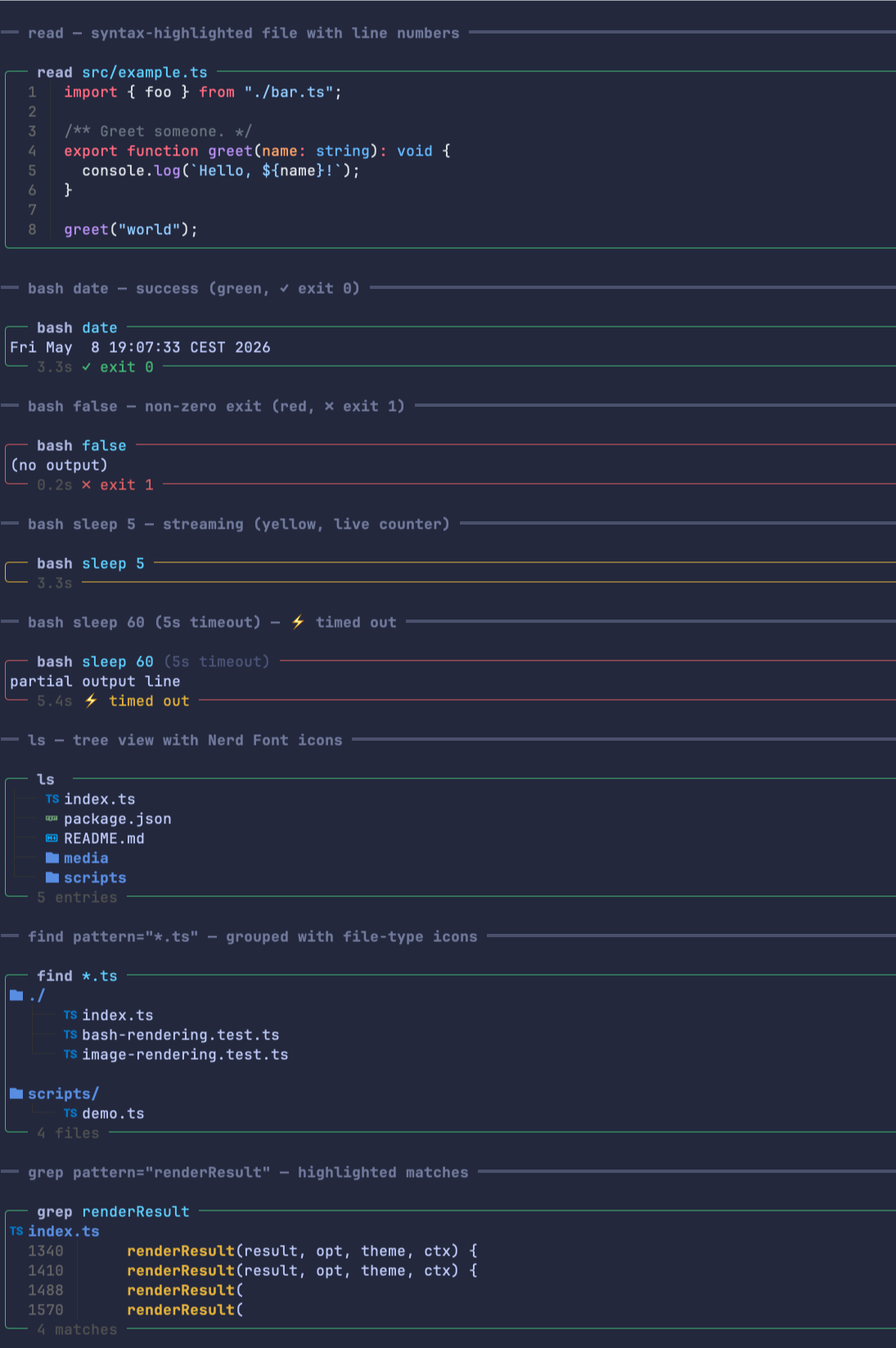

The demo script (scripts/demo.ts) is a visual harness — it boots the extension with mocked SDK tools and prints every renderer (read with live shiki highlighting, bash in success / non-zero / streaming / timeout states, ls tree, find groups, grep matches) so you can eyeball the open-right rounded frame, status-aware coloring, and the duration / exit summary in the bottom border.

Typecheck (uses the global tsc):

bunx tsc --noEmit --target esnext --module nodenext \
  --moduleResolution nodenext --strict --skipLibCheck \
  --allowImportingTsExtensions \
  index.ts

License

MIT — see LICENSE.
