Pi Agent Suite

A set of PI Coding Agent extensions that adds agent support, configurable workflows, dynamic context compression, MCP servers, mermaid rendering, and other useful features.

• Agents
• Workflows
• Dynamic LLM context compression
• Independent verification of LLM actions and results
• Discussion between LLMs for solving complex problems
• Full list of extensions with detailed documentation
• MCP support and recommended MCP servers
• Changelog

Quick start

1. Install extensions package using pi

pi install npm:pi-agent-suite

2. Copy demo agent and workflow files to your local Pi configuration

Copy Demo configuration files to ~/.pi/agent/agent-suite:

mkdir -p ~/.pi/agent/agent-suite
curl -fsSL https://github.com/n-r-w/pi-agent-suite/archive/refs/heads/main.zip | bsdtar -xf- --strip-components=4 -C ~/.pi/agent/agent-suite pi-agent-suite-main/docs/examples/agent-suite

3. Test it

1. Start Pi in a project directory.
2. Select the Coder agent with /agent or Ctrl+Shift+A.
3. Ask the agent about available subagents and workflows, for example: "What subagents, advisors, and workflows tools are available? How can you use them to solve a task? Give a very brief summary."

Expected response:

- **Subagents**
  - `SubAgentAnalyst`: research, analysis, reviews, architecture, specifications, and planning. No coding.
  - `SubAgentExtractor`: fast, accurate extraction of raw information. No analysis or business-logic interpretation.
  - I can start, steer, query, and wait for subagent sessions. Independent tasks can run in parallel.

- **Advisor**
  - `consult_advisor`: provides an independent second opinion on a focused question. It cannot access tools.

- **Workflows**
  - `Coding`: ready-made workflow for complex coding tasks.
  - I can activate it and transition through its allowed stages.
  - If no workflow fits, I can create a task-specific, staged workflow with advance and rework paths.

**Typical use:** activate a suitable workflow, gather evidence directly or through an extractor, delegate focused analysis to an analyst, consult the advisor for a second opinion when valuable, then complete and verify each workflow stage in order.

4. Ask the agent Try running each subagent to see how it works., type Ctrl+Shift+G or /subagents to open the subagent management screen, and see how the subagents run in parallel and return results.

What key problems does Pi Agent Suite solve?

Different tasks require unique combinations of rules, available tools, models, and reasoning levels

Solution: an agent system in which each agent can be configured for a specific task.

Management commands

Select the current active agent (a list of all agents with the main type is available):

• Command /agent
• Key binding Ctrl+Shift+A

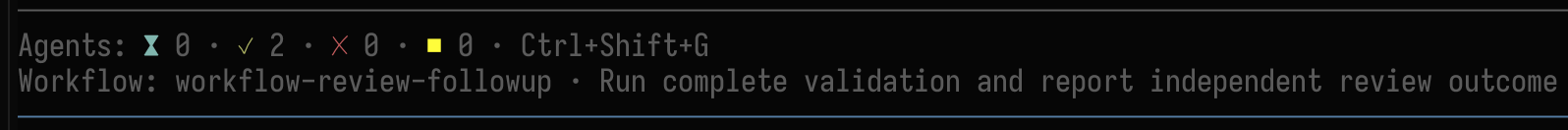

Open the UI for managing running agents:

• Command /subagents
• Key binding Ctrl+Shift+G

Available tools

• subagent_start - starts an available agent and returns a unique session identifier. The agent continues running in the background and can return a response either through subagent_wait or when its work is complete
• subagent_steer - sends a message to an existing agent session
• subagent_wait - waits for one of several active agent sessions to finish and returns the result of the first agent that completes
• subagent_query - allows the model to call an agent and ask it a follow-up question without affecting its session.

Creating agents

Agent file location: ~/.pi/agent/agent-suite/agent-selection/agents/<agent_name>.md

• description - the agent description, which will be:
  • displayed in the user interface when selecting an agent with the main type
  • added to the context for agents with the subagent and both types
• type - the agent type:
  • main - an agent that can be called directly by the user but cannot be called by other agents
  • subagent - an agent that can be called only by other agents and is not directly available to the user
  • both - an agent that can be called by both the user and other agents
• model - the model used by the agent. Parameters:
  • id - model identifier
  • thinking - model reasoning level (low, medium, high)
• tools - the list of tools the agent can use to solve a task.
  • The * wildcard is allowed.
  • If the tools field is omitted, the agent will use all available tools.
  • If tools: [] is set, no tools will be available.
• agents - the list of child agents that the agent can call while working.
  • Access to subagent_* tools is required.
  • If the agents field is omitted, the agent will not be able to call any other agents with the subagent or both type.
  • If agents: [] is set, subagents will be unavailable.
• workflows (optional) - the list of workflows the agent can use to solve a task.
  • Access to workflow_* tools is required.
  • If the workflows field is omitted, the agent will not be able to use any workflows.
  • If workflows: [] is set, workflows will be unavailable.

Example agent configuration file (Markdown):

description: Reviews code and checks implementation risks.
type: main
model:
  id: openai-codex/gpt-5.6-sol
  thinking: high
tools: ["consult_advisor", "convene_council", "subagent_*", "workflow_*", "read", "bash", "edit", "write", "grep", "find", "ls"]
agents: ["Extractor", "CodeSlopFinder"]
workflows: ["CodeReview"]
---
You are a code review agent. Check correctness, risks, and missing validation.
Use subagents to help you with the review.
Use `CodeReview` workflow to structure your process.

General agent system configuration (optional)

File: ~/.pi/agent/agent-suite/run-subagent/config.json

Name	Required	Type	Default	Meaning
enabled	No	Boolean	true	Enables or disables the agent system
maxDepth	No	Non-negative safe integer	1	Sets the maximum delegation depth
extensionDescriptionPromptFile	No	Non-empty absolute path	Bundled prompts/extension-description.md	Replaces the shared Subagents rules
startDescriptionPromptFile	No	Non-empty absolute path	Bundled prompts/start-description.md	Replaces subagent_start description
steerDescriptionPromptFile	No	Non-empty absolute path	Bundled prompts/steer-description.md	Replaces subagent_steer description
waitDescriptionPromptFile	No	Non-empty absolute path	Bundled prompts/wait-description.md	Replaces subagent_wait description
query	No	Object	{}	subagent_query tool configuration

query fields:

Name	Required	Type	Default	Meaning
model.id	No	provider/model string	Agent's current model	Custom model identifier
model.thinking	No	off, minimal, low, medium, high, or xhigh	Agent's current thinking level	Custom thinking level
systemPromptFile	No	Non-empty absolute path	Bundled prompts/query-system.md	Custom system prompt for subagent_query tool.

General configuration examples

Minimum config example: the configuration file can be omitted entirely, in which case the default values will be used.

Full config example:

{
  "enabled": true,
  "maxDepth": 2,
  "extensionDescriptionPromptFile": "/absolute/path/to/subagents-rules.md",
  "startDescriptionPromptFile": "/absolute/path/to/subagent-start.md",
  "steerDescriptionPromptFile": "/absolute/path/to/subagent-steer.md",
  "waitDescriptionPromptFile": "/absolute/path/to/subagent-wait.md",
  "query": {
    "model": {
      "id": "openai-codex/gpt-5.6-sol",
      "thinking": "medium"
    },
    "systemPromptFile": "/absolute/path/to/subagent-query-system.md"
  }
}

The model must be reliably kept on track rather than simply relying on a complex multi-step prompt

Solution: the ability to create workflows represented by a graph of stages, each of which can be completed by a subagent.

Available tools

• workflow_activate - activates an available workflow and places it in the model context.
• workflow_transition - transitions between stages of the active workflow.
• workflow_create - allows the model to create a custom workflow. It exists only in the context of the current session, is not saved to disk, and is activated immediately after creation.

Workflow structure

• Base prompt. It remains in the context and applies to all workflow stages.
• Stages. One initial stage and any number of intermediate and final stages are allowed.
• Stage prompt. It remains in the context only during that stage and does not clutter it with irrelevant requirements.
• Transition type between stages. It can be either advance (move forward) or rework (return for revision).

Example workflow configuration file (YAML)

description: Use for read-only inspection of code and technical artifacts
prompt: |-
  1. Do not modify inspected files.
  2. Inspect only permitted scope.
  3. Apply relevant skills, patterns, exclusions, and output format.
  4. Support every reported finding or recommendation with inspected evidence.
stages:
  - id: define_scope
    description: Define inspection scope
    prompt: |-
      1. Determine files, changes, modules, or repository areas permitted by scope rules.
      2. Identify excluded generated code and out-of-scope artifacts.
      3. Stop and request clarification when inspection scope cannot be determined safely.
    initial: true
  - id:  load_rules
    description: Load inspection rules
    prompt: |-
      1. Load every relevant skill and project rules.
      2. Identify patterns, invariants, and exclusions that define a valid finding.
  - id: inspect_artifacts
    description: Inspect code and technical artifacts
    prompt: |-
      1. Inspect permitted scope systematically.
      2. Include configuration, build scripts, and other technical artifacts when allowed by scope rules.
      3. Record evidence and source locations for candidate findings.
  - id: verify_findings
    description: Verify findings are valid and material
    prompt: |-
      1. Verify each candidate against project behavior, rules, and context.
      2. Remove duplicate, speculative, insignificant, or out-of-scope findings.
      3. Confirm that every recommendation preserves required behavior when scope rules require behavior preservation.
      4. Return to inspection when evidence is incomplete.
  - id: report_findings
    description: Deliver findings using required format
    prompt: |-
      1. Report only findings permitted by scope rules.
      2. Include required source locations, evidence, impact, and recommendations.
      3. Deliver result through required channel.
      4. Return to inspection when parent feedback requires additional analysis.
    final: true
transitions:
  - from: define_scope
    to:  load_rules
    type: advance
  - from:  load_rules
    to: inspect_artifacts
    type: advance
  - from: inspect_artifacts
    to: verify_findings
    type: advance
  - from: verify_findings
    to: report_findings
    type: advance
  - from: verify_findings
    to: inspect_artifacts
    type: rework
  - from: report_findings
    to: inspect_artifacts
    type: rework
  - from: report_findings
    to: define_scope
    type: rework

Every workflow requires:

• one initial stage and at least one final stage
• non-empty stage IDs without spaces, tabs, line breaks, or other Unicode whitespace
• single-line workflow and stage descriptions
• a non-empty prompt for every stage
• an optional root prompt for guidance that applies to every stage
• unique stage IDs and valid transition endpoints
• an acyclic advance graph in which every stage is reachable
• no outgoing advance from final stages
• at least one outgoing advance from non-final stages
• rework transitions only to strict advance ancestors

Workflow system configuration (optional)

Allows the system prompts for workflow_* tools to be replaced with custom prompts.

{
  "extensionDescriptionPromptFile": "/absolute/path/extension-description.md",
  "createDescriptionPromptFile": "/absolute/path/create-description.md",
  "activateDescriptionPromptFile": "/absolute/path/activate-description.md",
  "transitionDescriptionPromptFile": "/absolute/path/transition-description.md"
}

Long sessions inevitably cause context window overflow and degradation during compaction

Solution: dynamic context compression that compresses large tool call results without significantly degrading reasoning quality. Compression occurs in several stages, gradually lowering the minimum size threshold for tool call results that are subject to compression.

Configuration

Configuration file: ~/.pi/agent/agent-suite/context-projection/config.json.

Parameters:

Parameter	Required	Type or shape	Default	Meaning
enabled	No	Boolean	false	Enables projection
projectCompactionSource	No	Boolean	true	Before custom compaction, generates missing summaries for eligible tool results in Pi's discarded range. false leaves results without existing summaries to Pi's standard 2,000-character truncation.
projectionRemainingTokensL1	No	Non-negative integer	70000	Starts L1 projection when remaining context tokens are at or below this value. Must be greater than or equal to projectionRemainingTokensL2.
minToolResultTokensL1	No	Non-negative integer	4000	Minimum token count for a tool result to be projected at L1.
projectionRemainingTokensL2	No	Non-negative integer	50000	Starts L2 projection when remaining context tokens are at or below this value. Must be between L1 and L3.
minToolResultTokensL2	No	Non-negative integer	2000	Minimum token count for a tool result to be projected at L2.
projectionRemainingTokensL3	No	Non-negative integer	30000	Starts L3 projection when remaining context tokens are at or below this value. Must be less than or equal to projectionRemainingTokensL2.
minToolResultTokensL3	No	Non-negative integer	1000	Minimum token count for a tool result to be projected at L3.
keepRecentTurns	No	Non-negative integer	10	Minimum number of newest tool-use turns kept visible. A tool-use turn is an assistant tool call plus its matching tool results.
keepRecentTurnsPercent	No	Number from 0 to 1	0.2	Fraction of newest tool-use turns kept visible in long sessions. The extension uses the larger value from keepRecentTurns and this percentage.
projectionIgnoredTools	No	Array of unique non-empty strings	[]	Tool names whose results stay visible. consult_advisor and convene_council always stay visible, even when omitted from this list.
omittedNotice	No	Non-empty string	Result omitted. Run tool again for full result.	Text that replaces projected tool results when summary mode is disabled or a summary cannot be used.
summaryNotice	No	Non-empty string	Full result omitted. Summary below. Run tool again for full result.	Text written in <notice> when a projected tool result includes a generated summary.
summary	No	Object	Summary disabled	Configures optional generated summaries for projected tool results.

If multiple projection levels use the same remaining-token threshold, the extension uses the lowest matching minToolResultTokens* value for those levels.

Summary parameters:

Parameter	Required	Type or shape	Default	Meaning
summary.enabled	No	Boolean	false	Enables generated summaries for newly projected tool results.
summary.model	No	null or string in provider/model format	Current main model	Model used to generate summaries
summary.thinking	No	null, off, minimal, low, medium, high, or xhigh	Current thinking level	Thinking level used for summary requests
summary.maxConcurrency	No	Positive integer	1	Maximum number of summary requests that can run at the same time.
summary.retryCount	No	Non-negative integer	1	Number of retry attempts after the first summary request fails.
summary.retryDelayMs	No	Non-negative integer	5000	Delay between summary retry attempts, in milliseconds.
summary.systemPromptFile	No	null or absolute file path	Bundled system prompt	Custom system prompt file for summary generation
summary.userPromptFile	No	null or absolute file path	Bundled user prompt	Custom user prompt file appended after the tool result text

Minimum config example:

{
  "enabled": true
}

Full config example:
```json
{
  "enabled": true,
  "projectCompactionSource": true,
  "projectionRemainingTokensL1": 70000,
  "minToolResultTokensL1": 4000,
  "projectionRemainingTokensL2": 50000,
  "minToolResultTokensL2": 2000,
  "projectionRemainingTokensL3": 30000,
  "minToolResultTokensL3": 1000,
  "keepRecentTurns": 10,
  "keepRecentTurnsPercent": 0.2,
  "projectionIgnoredTools": [],
  "omittedNotice": "Result omitted. Run tool again for full result.",
  "summaryNotice": "Full result omitted. Summary below. Run tool again for full result.",
  "summary": {
    "enabled": false,
    "model": null,
    "thinking": null,
    "maxConcurrency": 1,
    "retryCount": 1,
    "retryDelayMs": 5000,
    "systemPromptFile": null,
    "userPromptFile": null
  }
}

Models tend to trust what they do and need an independent mechanism to verify their actions and results

Solution: give the model access to an advisor that receives the full current context and can independently evaluate the model's actions and results.

The consult_advisor tool is available. It has its own system prompt and accepts a question formulated by the model. Models with a high reasoning level are recommended.

Configuration parameters

Parameter	Required	Type or shape	Default	Meaning
enabled	No	Boolean	true	Enables or disables the consult_advisor tool
model	No	Object with optional id and thinking fields	Current session model and current thinking level	Selects the advisor model settings.
model.id	No	Non-empty string in provider/model format	Current session model	Selects the model used by the advisor.
model.thinking	No	One of off, minimal, low, medium, high, xhigh	Current thinking level	Selects the advisor thinking level.
promptFile	No	Non-empty absolute file path	Bundled advisor prompt	Uses a custom advisor prompt file
retry	No	Object with optional enabled, maxRetries, and baseDelayMs fields	Retry defaults	Controls retry behavior for retryable advisor provider failures.
retry.enabled	No	Boolean	true	Enables or disables retries.
retry.maxRetries	No	Non-negative integer	3	Sets the maximum number of retry attempts.
retry.baseDelayMs	No	Non-negative integer	2000	Sets the base retry delay in milliseconds.
debugPayloadFile	No	Non-empty absolute or relative file path	Not set	Writes the advisor request payload to this file for troubleshooting. Relative paths are resolved from the directory that contains config.json.

Configuration examples

Minimum config example: the configuration file can be omitted entirely, in which case the default values will be used.

Full configuration example:

{
  "enabled": true,
  "model": {
    "id": "provider/model",
    "thinking": "high"
  },
  "promptFile": "absolute/path/to/advisor-prompt.md",
  "retry": {
    "enabled": true,
    "maxRetries": 3,
    "baseDelayMs": 2000
  },
  "debugPayloadFile": "./debug/consult-advisor-payload.json"
}

Solving complex problems requires discussion

Solution: give the model access to a council of experts that discusses the problem and reaches a shared solution.

The convene_council tool is available. It has its own system prompt and accepts a question formulated by the model. In addition, convene_council receives the current session context packaged as a file that the council can read. Unlike consult_advisor, council members have access to any tools. They can read files, run Bash commands, and so on. The council consists of two members who can be selected from the list of available models. Models with a high reasoning level are recommended.

Configuration parameters

Config file: ~/.pi/agent/agent-suite/convene-council/config.json.

Parameters:

Parameter	Required	Type or shape	Default	Meaning
enabled	No	Boolean	false	Enables the extension only when set to true.
llm1	No	Object with optional model	Uses the current session model and thinking level	Configures the first participant.
llm1.model	No	Object with optional id and thinking	Uses the current session model and thinking level	Configures the first participant model.
llm1.model.id	No	Non-empty provider/model string	Current session model	Model for the first participant.
llm1.model.thinking	No	One of off, minimal, low, medium, high, xhigh	Current thinking level	Thinking level for the first participant.
llm2	No	Object with optional model	Uses the current session model and thinking level	Configures the second participant.
llm2.model	No	Object with optional id and thinking	Uses the current session model and thinking level	Configures the second participant model.
llm2.model.id	No	Non-empty provider/model string	Current session model	Model for the second participant.
llm2.model.thinking	No	One of off, minimal, low, medium, high, xhigh	Current thinking level	Thinking level for the second participant.
participantIterationLimit	No	Positive integer	3	Maximum number of discussion iterations before returning a no-consensus result.
finalAnswerParticipant	No	One of llm1, llm2	llm2	Participant that writes the final answer after agreement.
responseDefectRetries	No	Non-negative integer	1	Number of retries for malformed participant responses or defective final answers.
tools	No	Array of non-empty tool-name patterns	Participants receive only read	Additional tools available to participants. read is always included.

Configuration example

{
  "enabled": true,
  "llm1": {
    "model": {
      "id": "provider/model-a",
      "thinking": "high"
    }
  },
  "llm2": {
    "model": {
      "id": "provider/model-b",
      "thinking": "medium"
    }
  },
  "participantIterationLimit": 3,
  "finalAnswerParticipant": "llm2",
  "responseDefectRetries": 1,
  "tools": ["grep", "ls"]
}

Full list of extensions with detailed documentation

Extension	Default behavior	What it does	Quick settings	Details
system-prompt	Enabled	Replaces pi's base system prompt with a Markdown template and runtime variables.	system-prompt/config.json: enabled, templateFile.	docs/extensions/system-prompt.md
project-rules	Enabled	Appends recursive project Markdown rules from .pi/rules; global ~/.pi storage is excluded.	project-rules/config.json: enabled, rulesDir.	docs/extensions/project-rules.md
mcp-wrapper	No MCP tools until configured	Registers tools from configured MCP servers, caches tool metadata, and adds /mcp-refresh.	mcp-wrapper/config.json: settings.enabled, settings.timeouts, mcpServers.	docs/extensions/mcp-wrapper.md
enable-tools	Enabled	Enables configured built-in tools such as grep, find, and ls.	enable-tools/config.json: enabled, include, exclude.	docs/extensions/enable-tools.md
footer	Enabled	Shows project, optional git branch, runtime details, and additional extension statuses.	footer/config.json: enabled, model display options, showApiCost, showGitBranch, showAdditionalStatusLine.	docs/extensions/footer.md
codex-fast	Disabled	Toggles fast mode for supported OpenAI Codex requests and marks the footer model with -F.	State: codex-fast/state.json. Toggle with /fast or Ctrl+Alt+F.	docs/extensions/codex-fast.md
codex-verbosity	Disabled	Adds text.verbosity to OpenAI Codex requests.	codex-verbosity/config.json: enabled, verbosity (low, medium, high).	docs/extensions/codex-verbosity.md
codex-quota	Disabled	Shows OpenAI Codex quota status in the footer.	codex-quota/config.json: enabled, refreshInterval, retryAttempts, retryInterval.	docs/extensions/codex-quota.md
custom-compaction	Enabled	Replaces fixed-request pi compaction with bounded adaptive summarization that can reduce oversized history before the final summary.	custom-compaction/config.json: enabled, model, reasoning, prompt file paths, retry.	docs/extensions/custom-compaction.md
context-projection	Disabled	Replaces old large non-critical tool results in provider context with an omitted notice or summary; requires valid enabled custom compaction.	context-projection/config.json: enabled, projectCompactionSource, projection thresholds, recent-turn protection, omittedNotice, summaryNotice, summary.	docs/extensions/context-projection.md
workflow	Inactive until configured	Adds validated workflow activation, stage transitions, route-derived provider context, and a compact active-stage row in the shared session status panel.	Add .yaml files under workflow/workflows; optional prompt paths in workflow/config.json.	docs/extensions/workflow.md
mermaid	Enabled in TUI mode	Renders supported Mermaid blocks from assistant responses as durable ASCII previews.	Fixed safety limits; no configuration.	docs/extensions/mermaid.md
completion-sound	Enabled	Plays a sound after successful top-level agent runs.	completion-sound/config.json: enabled, command, args, volume.	docs/extensions/completion-sound.md
cmux	Enabled	Sends cmux notification after successful top-level agent runs.	cmux/config.json: enabled.	docs/extensions/cmux.md
main-agent-selection	Enabled	Adds /agent and Ctrl+Shift+A for selecting reusable main agents.	agent-selection/config.json: enabled, diagnosticsEnabled.	docs/extensions/main-agent-selection.md
run-subagent	Enabled	Adds subagent_start, subagent_steer, subagent_wait, and saved-session subagent_query tools, an Agents row in the shared session status panel, and the /subagents (Ctrl+Shift+G) management screen.	run-subagent/config.json: enabled, maxDepth, descriptions, and query model/system prompt.	docs/extensions/run-subagent.md
structured-prompt	Enabled	Adds /prompt and Ctrl+Alt+P for building structured user requests.	structured-prompt/config.json: enabled.	docs/extensions/structured-prompt.md
ask-llm	Enabled	Adds /ask for one-off model questions that are not saved to the current session.	ask-llm/config.json: enabled, model, systemPromptFile, retry.	docs/extensions/ask-llm.md
consult-advisor	Enabled	Adds the consult_advisor tool for an independent model opinion.	consult-advisor/config.json: enabled, model, promptFile, debugPayloadFile, retry.	docs/extensions/consult-advisor.md
convene-council	Disabled	Adds the convene_council tool for a bounded two-participant model discussion.	convene-council/config.json: enabled, llm1, llm2, participantIterationLimit, finalAnswerParticipant, responseDefectRetries, tools.	docs/extensions/convene-council.md

MCP support and recommended MCP servers

These MCP servers can significantly improve overall efficiency (they require separate installation before use):

• https://github.com/n-r-w/team-mcp for collaboration desks between agents.
• https://github.com/n-r-w/asteria for symbolic code search.

To use MCP servers, add them to the agent-suite/mcp-wrapper/config.json extension configuration:

{
  "mcpServers": {
    "team": {
        "type": "stdio",
        "command": "team-mcp"
    },
    "asteria": {
        "type": "stdio",
        "command": "asteria-mcp"
    }
  }
}
