pi-open-tui

A polished TUI for Pi coding agent. Combines the best of pi-haiku, pi-claude-code-tui, and pi-zentui into one cohesive package.

What's in it

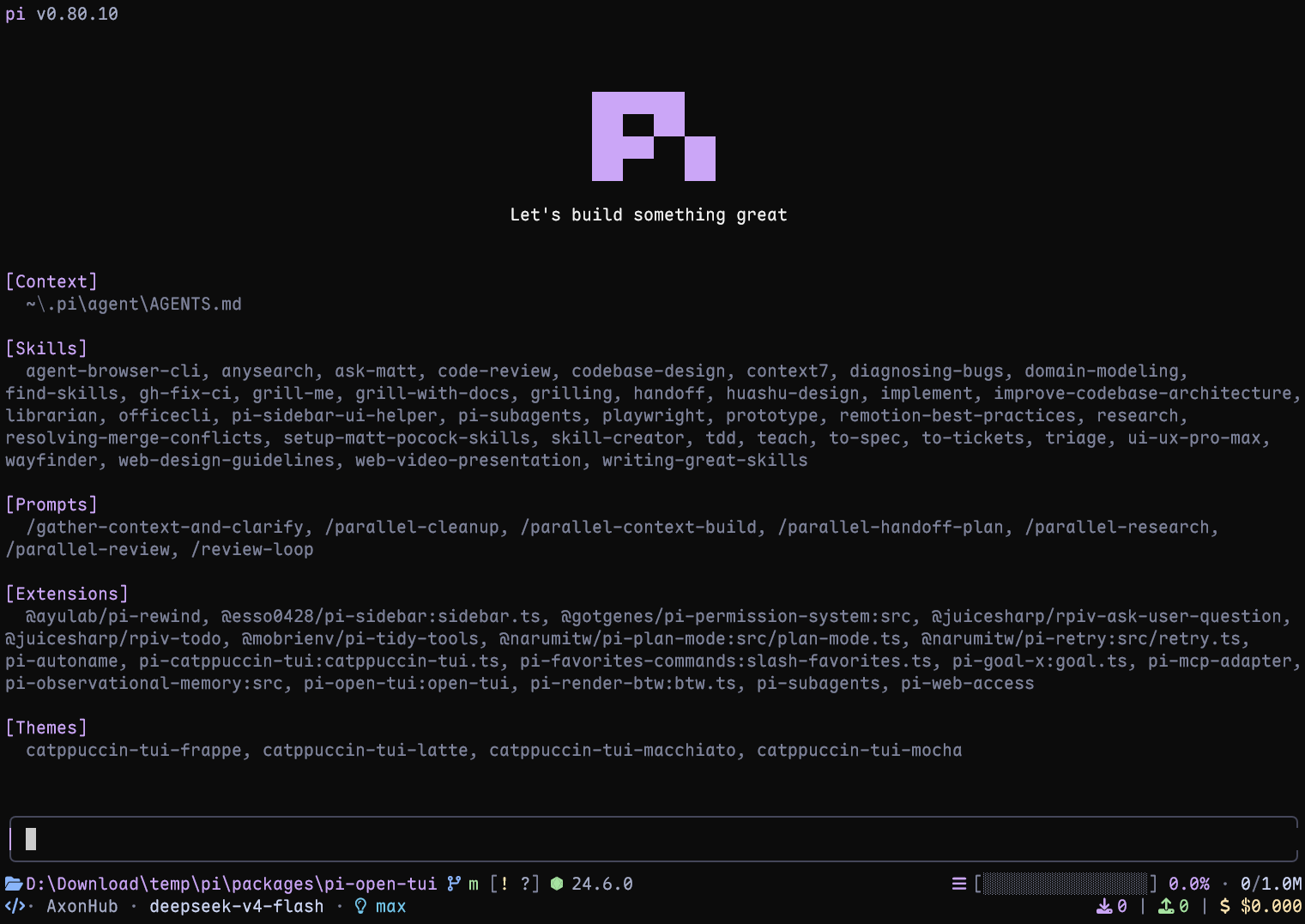

• Animated Pi logo header — 16-frame color-changing logo animation + "Let's build something great" tagline
• Starship-style footer — 2 lines showing cwd, git branch/status, runtime version, context bar, model, token counts, and cost
• Rounded editor — accent rail + borderMuted rounded corners, clean visual frame
• 60+ runtime detection — Node, Rust, Go, Python, Ruby, Java, Swift, Kotlin, C/C++, Deno, Bun, and many more
• Git status — branch, ahead/behind, modified/untracked/staged/stashed, detached HEAD commit hash + tag
• Working timer — live elapsed time while the agent is working, done duration when finished
• Turn telemetry — generation speed, TTFT, stalls, tokens, and list-price rate after each complete agent run
• Zero prototype patches — uses public Pi APIs (setHeader/setFooter/setEditorComponent), safe across Pi updates
• Interactive settings UI — /open-tui opens a tabbed settings dialog (Features / Icons / Segments / Telemetry)

Install

pi install npm:pi-open-tui

Or try it for one run:

pi -e npm:pi-open-tui

Configuration

Run /open-tui to open the interactive settings UI. Configuration is stored at ~/.pi/agent/open-tui.json:

{
  "enabled": true,
  "icons": {
    "mode": "auto"
  },
  "footerSegments": {
    "cwd": true,
    "gitBranch": true,
    "gitStatus": true,
    "gitCommit": false,
    "runtime": true,
    "context": true,
    "tokens": true,
    "cost": true
  },
  "telemetry": {
    "enabled": true,
    "tps": true,
    "ttft": true,
    "duration": true,
    "tokens": true,
    "stalls": true,
    "cost": true
  }
}

• icons.mode: auto (detect Nerd Font), nerd (force Nerd Font glyphs), or ascii (plain fallbacks)
• footerSegments.gitCommit: shows short hash + tag on detached HEAD (off by default)

Turn telemetry

After each complete agent run, open-tui shows one transient notification. Tool-call turns are aggregated into that single result:

> TPS 42.5 tok/s | ~ TTFT 1.2s | + 29.7s | ↓ in 567 | ↑ out 1.2k | ! stall 1x / 4.3s | $ $3.60/M

The notification uses the footer's icon mode and semantic theme colors. Configure its master switch and individual TPS, TTFT, duration, token, stall, and cost segments from the Telemetry tab in /open-tui.

TPS excludes time-to-first-token, detected stalls, and tool execution between messages. In a multi-turn agent run, it is weighted from the turns with measurable streaming spans; an unmeasurable tool turn no longer hides a measurable final response. A rate that cannot be identified reliably is shown as TPS —. The stall segment shows occurrence count followed by accumulated duration. The optional $ / M value uses the model's list-price usage.cost.total; it is not the session's cumulative cost shown in the footer.

Local development

pi -e .

License

MIT

Acknowledgements

This project builds on the work of several Pi community packages:

• pi-haiku — the 2-line footer structure (location+model · timer+context) and working-timer pattern
• pi-claude-code-tui — the 16-frame animated Pi logo and rounded editor border technique
• pi-zentui — the Starship-style footer segments (git status icons, runtime detection, context gauge), generation-based session lifecycle, and interactive settings UI pattern
• pi-tps — the turn timing, stall detection, and conservative TPS measurement approach

The animated logo frames are derived from pi-claude-code-tui, which in turn derive from Pi's official install script (pi.dev/install.sh). The runtime detection list and git porcelain parsing borrow structure from pi-zentui.
