pi-subagent-in-memory

In-process subagent tool for pi with live TUI card widgets, JSONL session logging, and zero system-prompt overhead.

Key Design Principle

This extension adds nothing to your LLM context beyond tool parameter definitions. No system prompt injection, no hidden instructions, no pre-determined behavior — the LLM only sees the subagent_create tool schema and decides how to use it naturally.

Features

🤖 subagent_create Tool

Spawns an in-process subagent session using pi's createAgentSession SDK. The subagent runs in the same process (not a subprocess), with its own session, tools, and model. Multiple subagents can run in parallel.

Tool parameters:

Parameter	Type	Required	Description
task	string	✅	The task for the subagent to perform
title	string		Display title for the card widget
provider	string		LLM provider (e.g. anthropic, google, openai)
model	string		Model ID. Supports provider/model format (e.g. openai/gpt-4o-mini)
cwd	string		Working directory for the subagent
timeout	number		Timeout in seconds. Aborts the subagent if exceeded
columnWidthPercent	number		Card width as % of terminal (33–100). Controls card grid layout

If provider and model are omitted, the subagent inherits the main agent's model.

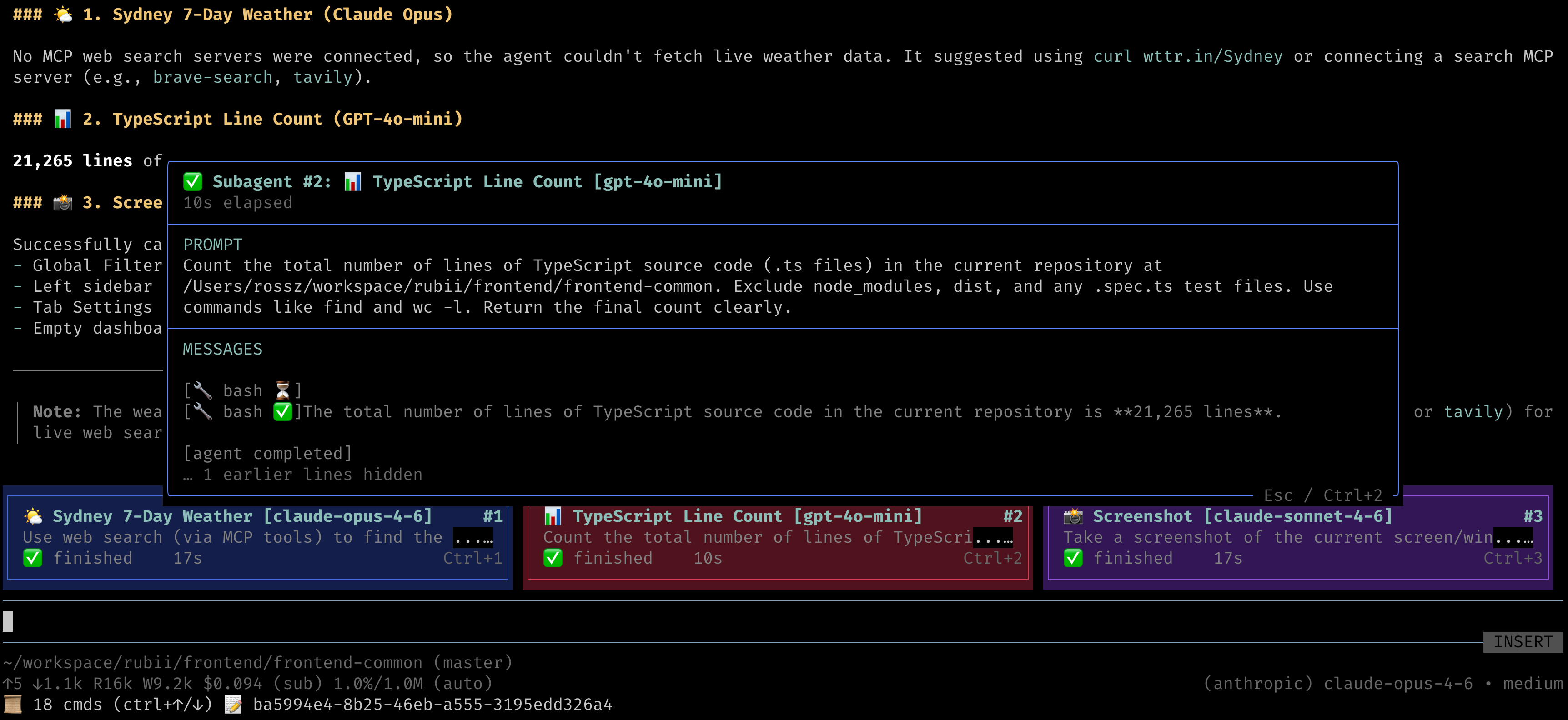

📊 Live TUI Card Widgets

Each running subagent is displayed as a colored card widget above the editor:

• Cards show title, model, prompt preview, elapsed time, and status indicator (⏳ started, ⚡ working…, ✅ finished, ❌ error)
• The prompt passed to the subagent is displayed as card content, so you can see at a glance what each subagent is doing
• Cards auto-layout into a responsive grid (1–3 columns based on columnWidthPercent)
• Subagent number badge (#1, #2, …) shown on the top-right corner of each card
• Six rotating color themes for visual distinction between cards

🔍 Subagent Detail Overlay (Ctrl+N)

Press Ctrl+1 through Ctrl+9 to open a detail popup for the N-th visible subagent card (1 = leftmost/topmost in the current window):

• Prompt — Full prompt text with word wrapping (up to 5 lines)
• Messages — Live-updating stream of the subagent's activity (text output, tool calls, status changes), always showing the latest 5 lines
• Press the same Ctrl+N shortcut or Escape to close the overlay

📑 Paging Through Cards (Ctrl+Alt+←/→)

When more subagents have been spawned than fit in the visible window (see /saim-set-max-tui-overlays below):

• Ctrl+Alt+← scrolls back to older subagent cards
• Ctrl+Alt+→ scrolls forward to newer subagent cards
• A subagents X–Y of N (Ctrl+Alt+←/→ to page) hint is displayed above the cards whenever paging is active

📝 JSONL Session Logging

Every subagent session is logged to disk for debugging and auditing:

.pi/subagent-in-memory/<mainSessionId>/
├── subagent_1/
│   ├── events.jsonl    # Full event stream (text, tool calls, results)
│   └── result.md       # Final subagent output (or error.md on failure)
├── subagent_2/
│   ├── events.jsonl
│   └── result.md
└── ...

The JSONL log includes:

• Session metadata (model, provider, task, cwd)
• Aggregated text output (deltas combined into single entries)
• Tool call arguments and results
• Timestamps and parent event IDs for tracing

🔄 Nested Subagent Support

Subagents can spawn their own subagents. All nested cards render in the main agent's widget — they share the same module-level state regardless of nesting depth. This is achieved by passing the subagent_create tool directly as an AgentTool to child sessions.

🎛️ TUI Overlay Slash Commands

Command	Description
/saim-toggle-overlay [on|off|toggle]	Enable, disable, or toggle the subagent TUI overlay. When disabled, no card widget is mounted even while subagents are actively running — they continue executing silently in the background.
/saim-set-max-tui-overlays <N>	Set the maximum number of cards displayed at once (1–9, default 3). Older cards remain accessible via Ctrl+Alt+←/→.
/saim-clear-tui-overlay	Clear all subagent cards from the TUI and close any open detail overlay.

🚩 --saim-no-tui CLI Flag

Start pi with --saim-no-tui to launch with the subagent overlay disabled (equivalent to running /saim-toggle-overlay off immediately on startup). Subagents still run normally — only the TUI cards are hidden.

Install

pi install npm:pi-subagent-in-memory

Remove

pi remove npm:pi-subagent-in-memory

Verify Installation

After installing, start pi and check:

1. The subagent_create tool should appear in the tool list
2. The /saim-toggle-overlay, /saim-set-max-tui-overlays, and /saim-clear-tui-overlay commands should be available (type / to see commands)
3. Ask the agent to "run a subagent to list files" — you should see a card widget appear

Usage Examples

Once installed, the LLM will discover the subagent_create tool from its schema and use it when appropriate. Some natural prompts:

# Single subagent
"Spawn a subagent to analyze the test coverage in this repo"

# Parallel subagents
"Run 2 subagents in parallel: one to summarize src/ and another to summarize tests/"

# Different models
"Use a subagent with openai/gpt-4o-mini to review the README"

# With timeout
"Spawn a subagent with a 60-second timeout to count lines of code"

# Custom working directory
"Run a subagent in /tmp to check disk space"

How It Works

1. Tool registration — On load, registers subagent_create as a tool plus the /saim-* commands and --saim-no-tui flag. No system prompt modifications.
2. Session creation — When the LLM calls subagent_create, a new createAgentSession is created in-process with its own model, auth, and coding tools (read, write, edit, bash, grep, find, ls).
3. Event streaming — All subagent events (text deltas, tool calls, completions) are forwarded as tool_execution_update events to the parent agent and logged to JSONL.
4. Widget rendering — A TUI widget renders card(s) above the editor, updated on every event.
5. Result handoff — The final text output is written to result.md. The parent agent receives a short pointer path, not the full content, keeping context lean.

Requirements

• pi (peer dependency)
• API keys configured for any providers you want subagents to use (via pi login or environment variables)

License

MIT
