pi-visualize-code-changes

Pi skill that turns a code change into before / after / what-changed Mermaid diagrams — so reviewers see behaviour, not just hunks.

Installable as a Pi package. Works with any Agent Skills harness that loads SKILL.md.

Install (Pi)

pi install npm:pi-visualize-code-changes

# Recommended: structured lens prompts (ask_user_question)
pi install npm:@juicesharp/rpiv-ask-user-question

# or from git:
# pi install git:github.com/BlockedPath/pi-visualize-code-changes
# or local path while developing:
# pi install /Users/justin/dev/pi-visualize-code-changes

Without the ask-user extension the skill still works — it just picks a lens itself instead of offering a short questionnaire when --lens is omitted.

Then in a Pi session:

/skill:visualize-code-changes
/skill:visualize-code-changes uncommitted
/skill:visualize-code-changes pr 42 --lens sequence
/skill:visualize-code-changes main...HEAD --focus src/auth --out docs/diagrams/auth.md

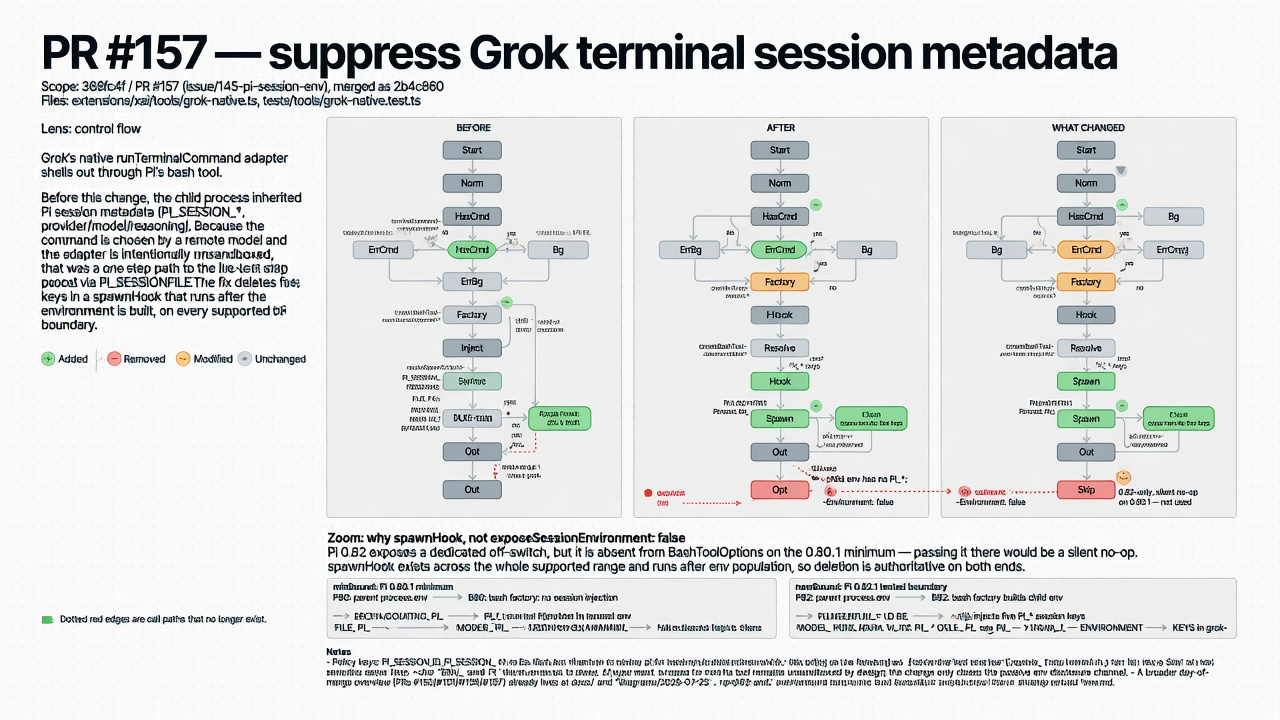

What it produces

One Markdown file (default docs/diagrams/<slug>.md) with:

1. Before — how the flow worked
2. After — how it works now
3. What changed — merged, colour-coded diff view (added / removed / changed / same)

GitHub and GitLab render the Mermaid blocks natively.

Arguments

[scope] [--lens TYPE] [--focus PATH]... [--out PATH] [--slug NAME] [--render]

Token	Meaning
scope	uncommitted, staged, pr <n>, branch <name>, main...HEAD, <sha>, …
--lens	control-flow, dependency, sequence, state, data-flow
--focus	Limit deep-read/diagram to path(s)
--out / --slug	Output path control
--render	Also emit SVGs (needs mermaid-cli)

Requirements

No npm runtime dependencies — this package is a skill (Markdown + one stdlib Python script).

Need	Required?
Pi (or another Agent Skills host)	Yes
Git	Typical — diff discovery (git diff, git show, ranges). Session-edited files still work without it
@juicesharp/rpiv-ask-user-question (or any host tool that exposes ask_user_question / AskUserQuestion)	Recommended — interactive lens choice when --lens is omitted. Without it, the skill auto-picks
Python 3	For diagram validation only (stdlib; no pip deps)
gh (GitHub CLI)	Only for pr <n> scope (gh pr diff). Other scopes use git alone
@mermaid-js/mermaid-cli (mmdc) + Chrome/Chromium	Optional — authoritative validation and --render SVGs. Without it, validation falls back to built-in heuristics

# recommended — lens questionnaire
pi install npm:@juicesharp/rpiv-ask-user-question

# optional — PR scope
# brew install gh   # or see https://cli.github.com/

# optional but recommended — stronger Mermaid validation / SVG render
npm i -g @mermaid-js/mermaid-cli
# mmdc needs a Chrome/Chromium on PATH (or Puppeteer's bundled browser)

Package layout

pi-visualize-code-changes/
├── package.json          # pi.skills → ./skills
└── skills/
    └── visualize-code-changes/
        ├── SKILL.md
        ├── assets/template.md
        ├── references/
        └── scripts/validate_mermaid.py

Development

# try without publishing
pi install /absolute/path/to/pi-visualize-code-changes
# or one-shot
pi -e /absolute/path/to/pi-visualize-code-changes

License

MIT
