pi-workbench

Terminal workbench for live Pi sessions

Install · Usage · Controls · Configuration · Development

Run multiple Pi sessions side by side, keep them alive, and switch between them without leaving your terminal.

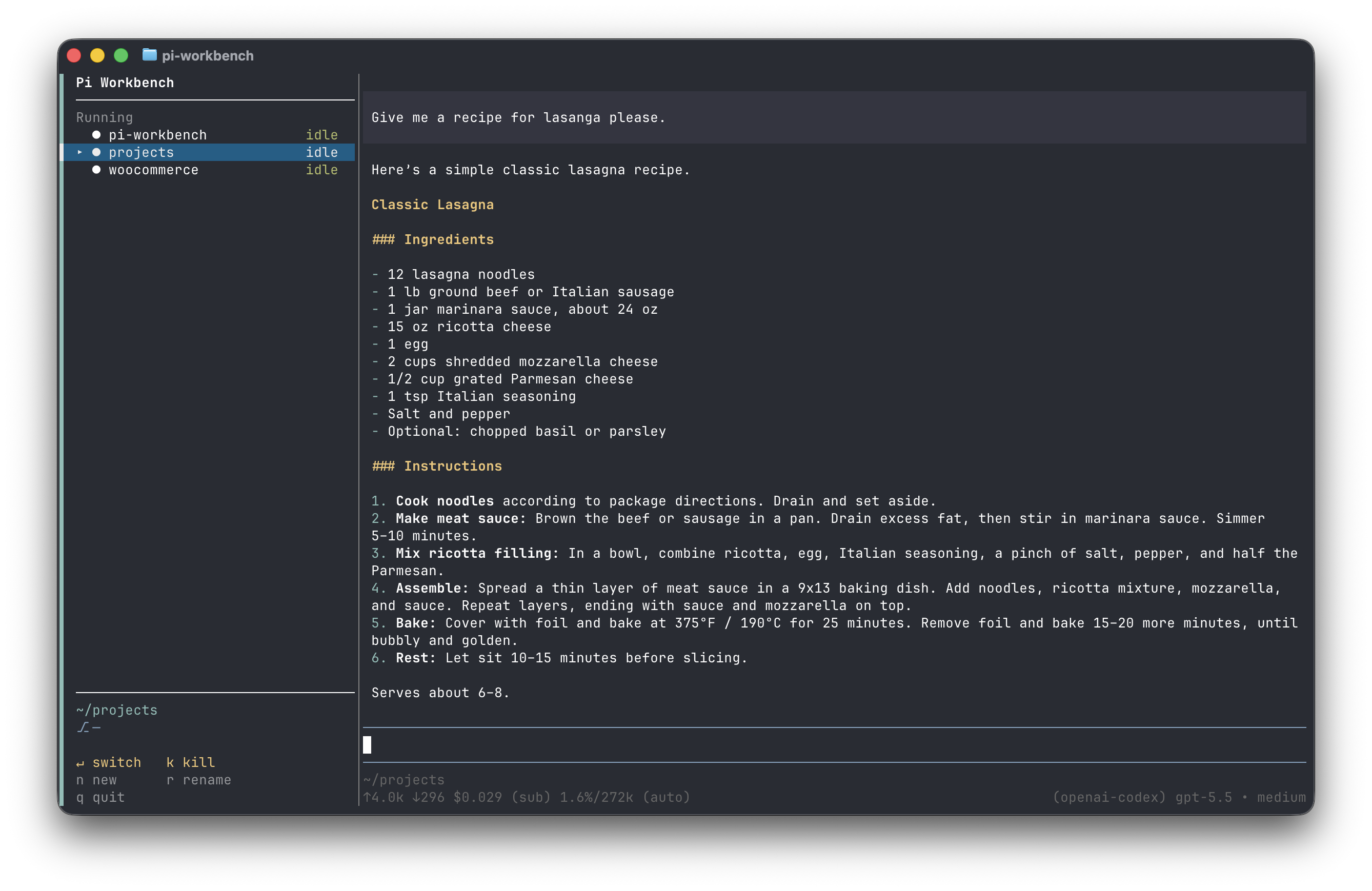

pi-workbench gives Pi a compact tmux-based workspace: a session sidebar on the left, your active Pi pane on the right, and hidden live panes for the sessions you're not currently viewing. Start it once, jump between projects, reopen stopped sessions, and keep each Pi process and terminal state intact.

---

Install

pi install npm:pi-workbench
pi-workbench

Global Pi npm installs use npm install -g, so the pi-workbench binary should be available on PATH after installation.

Project-local installs may not expose the CLI globally. If pi-workbench is not on PATH, the extension shows a warning with suggested fixes.

---

Usage

pi-workbench

When launched from a project directory, pi-workbench opens a two-pane terminal layout:

Pane	Purpose
Left	Compact session list, 36 columns by default
Right	Active Pi session

If a Pi session for the current directory is already running, pi-workbench reuses it instead of spawning a duplicate. Inactive Pi sessions stay alive in hidden tmux windows and are swapped into the right pane when selected. If a managed Pi session exits, it remains in the list as stopped and can be reopened from the sidebar.

Starting sessions in another directory

Press n to open the new-session picker. Choose a recent project with ↑/↓ and Enter, or type a directory path directly. While typing, pi-workbench shows a muted inline completion suggestion; press Tab to accept it. ~ paths and relative paths are supported.

---

Controls

Key	Action
ctrl+g	Focus the sidebar from the workbench
↑ / ↓	Move selection
Enter	Switch selected session into the right pane; reopen it if stopped
n	Start a new Pi session from recent projects or a typed path
r	Rename selected session in the workbench
k	Kill selected live session
x	Remove selected stopped session
q	Quit workbench

Quitting asks for confirmation and then kills managed Pi processes. Pi session histories remain available through Pi's normal resume flow.

Killing a selected live session also asks for confirmation. If you kill the active session and no other live session exists, pi-workbench restarts that same workbench row in place so the right pane remains usable without creating duplicate rows.

---

Configuration

Sidebar layout

The sidebar defaults to 36 columns. Override it for one run:

PI_WORKBENCH_SIDEBAR_WIDTH=40 pi-workbench

Or persist preferences in ~/.pi/workbench/config.json:

{
  "sidebarWidth": 40,
  "hideTmuxStatus": true,
  "mouse": true
}

Ghostty and tmux keys

Pi works inside tmux, but tmux needs extended key forwarding for modified keys. Recommended ~/.tmux.conf:

set -g extended-keys on
set -g extended-keys-format csi-u

Then restart tmux fully:

tmux kill-server
tmux

pi-workbench also tries to enable extended-key handling for the current tmux server, but adding the config above keeps the setting persistent.

Mouse mode

pi-workbench enables tmux mouse mode for its managed session so you can click the sidebar or right pane to change focus where supported.

If mouse-wheel scrolling enters tmux copy-mode and typing starts searching instead of returning to Pi's prompt, disable mouse mode in ~/.pi/workbench/config.json:

{
  "mouse": false
}

Apply it to a running workbench immediately with:

tmux set-option -t pi-workbench mouse off

With mouse mode off, use ctrl+g to focus the sidebar from the right pane.

---

How it works

• The Pi extension registers each Pi process in ~/.pi/workbench/sessions.json.
• The extension updates coarse status: idle, thinking, running, stopped.
• The CLI creates a tmux session named pi-workbench.
• The visible workbench window contains the compact sidebar and active Pi pane.
• Other managed Pi sessions live in hidden tmux windows.
• Switching uses tmux swap-pane to preserve each Pi process and PTY state.
• The sidebar groups running and stopped sessions, disambiguates duplicate names, supports local renames, and shows the selected session path and git branch in the footer.

---

CLI commands

pi-workbench doctor          # print environment diagnostics
pi-workbench doctor --json   # machine-readable diagnostics
pi-workbench reset           # kill the workbench tmux session
pi-workbench reset --clear-registry
pi-workbench prune           # remove stale live entries
pi-workbench prune --stopped # remove stopped entries too
pi-workbench smoke           # run automated tmux smoke test

Equivalent npm scripts are available during development:

npm run doctor
npm run reset
npm run prune
npm run smoke

---

Development

git clone https://github.com/dmallory42/pi-workbench.git
cd pi-workbench
npm install
npm run check
npm link
pi install /path/to/pi-workbench
pi-workbench

npm run check runs TypeScript, unit tests, and an automated tmux smoke test.

The smoke test creates temporary isolated tmux sessions, verifies the two-pane layout, checks the compact sidebar width, exercises the real sidebar render path, verifies focus hints and selected-row highlighting, checks confirmation flows, verifies active-session restart behavior, verifies a swap-pane session switch, and then tears the tmux sessions down.
