tps-gentle-pi

A live tokens-per-second (TPS) meter for the Pi coding agent. It draws a compact two-part panel above the editor: a header line with the turn sparkline, last rate, mean (μ), P² p95, participant counts, and panel-wide rate and token totals, plus one row per participant — the main agent and each gentle-pi subagent whose correlation evidence is deterministic. It is a zero-build TypeScript package: Node 24 executes the sources directly, and nothing is compiled.

Answer: the meter works on vanilla Pi (no gentle-pi) with zero subagent rows, and degrades silently — a channel or aggregation failure never disables the main meter.

Quick path

1. Install the package from the Pi package gallery:

   pi install npm:tps-gentle-pi


2. Start a TUI session and stream a response. The panel appears above the editor.

3. Confirm the header aggregates (sparkline, μ, p95, totals) and the main row gauge and tok/s update while output streams.

What it looks like

The panel sits above the editor while a response streams. It has two parts: a header line with the session-wide aggregates, then one row per participant (the main agent plus every live subagent).

Throughput ▂▃▄▅▄▅▆▆▇▇██  58.0 tok/s  μ 38.2  p95 51.0  3 active  1 streaming  84.6 tok/s total  14.6k tok
· Main  (anthropic/claude-3-7-sonnet:high)  ████▌···········  42.5 tok/s  · 12.3k tok
├─ ⠋ scout  (anthropic/claude-3-5-haiku)  ██▋·············  24.1 tok/s  tool: read  · 1.4k tok
└─ ⠋ worker  (anthropic/claude-3-5-haiku:low)  █▉··············  18.0 tok/s  streaming  · 820 tok

Part	Fields, left to right. Trailing fields drop on narrow terminals.
Header	Throughput + 12-turn sparkline, last tok/s, μ, p95, N active, N streaming, panel tok/s total, total tok
Main row	phase icon, Main (or Main [tool: x]), provider/id:thinking at standard and wide, hybrid gauge, tok/s, · N tok at standard and wide
Subagent row	tree glyph + phase icon, raw correlated agent name or honest subagent / subagent · <pid> fallback, provider/id:thinking at standard and wide, hybrid gauge, tok/s, phase/tool state, · N tok at standard and wide

The gauge is hybrid: the denominator is max(fastest live row, 150) tok/s. While every participant stays below 150 tok/s, each bar is an absolute magnitude reading on the fixed 150 tok/s scale, so a quiet panel never looks busy. As soon as one participant exceeds 150 tok/s, the fastest row fills the bar and the rest compare against it, so the panel keeps showing relative shape at high speed. Task titles are intentionally never displayed: a worker row is named by the raw correlated agent name, or by the honest fallback when correlation is ambiguous. The header aggregates derive only from the tracker and the live rows — nothing is fabricated.

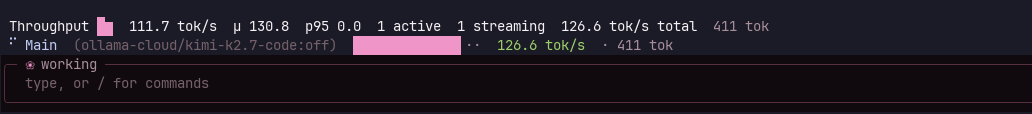

Main meter: gauge, live tok/s, 12-turn sparkline, μ, and p95.

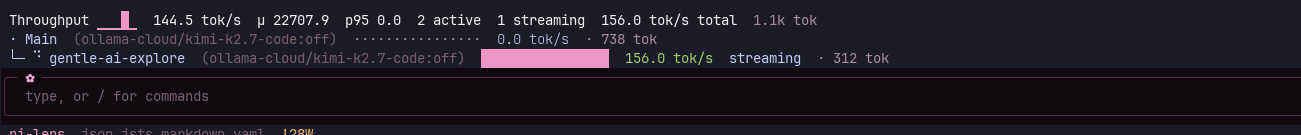

Main meter with one active gentle-pi subagent row while the worker streams.

How it works

Area	Decision
Main meter	Live TPS from output deltas since the first delta, preferring provider-reported usage and falling back to a ceil(chars / 4) estimate. Authoritative usage is recorded at message end and pushed into the sparkline, mean, and P² p95.
Roles	session_start selects parent-tui (TUI + no child marker), gentle-worker (child marker + inherited channel), or headless-noop.
Subagent channel	The parent creates one private, unpredictable session directory; each worker publishes a throttled, atomic, schema-validated snapshot. The parent aggregates only live snapshots.
Identity	The row name is the raw correlated agent name (agent), shown only when exactly one worker and one active task match. Otherwise the row uses an honest fallback (subagent / subagent · <pid>) and never guesses. Task titles are never rendered.

Installation and child visibility

Install as a package (pi install npm:tps-gentle-pi) so gentle-pi can load the extension inside every child worker. Gentle Agents launches subagents as isolated pi --mode rpc child processes, so the only ways a child gets the extension are package discovery or an explicit propagated load.

A one-off pi -e load in the parent is not propagated to children. In that case the main panel keeps working, but no subagent rows appear — the extension never fabricates rows for workers that did not publish a snapshot.

Vanilla Pi and fallback

On vanilla Pi (no gentle-pi installed, no Gentle Agents tools observed), the extension consumes only the public ExtensionAPI/ExtensionContext surface (pi.on, ctx.mode, ctx.hasUI, ctx.ui) and never imports gentle-pi at runtime. The main-agent live TPS, sparkline, mean, and p95 work fully, and zero subagent rows are rendered.

Every optional subagent path degrades safely: directory creation, publication, reading, validation, aggregation, or cleanup failures leave subagent rows absent while the main panel continues updating. No exception escapes to the Pi session.

Temporary files, privacy, and lifecycle

• The parent creates one private session directory under os.tmpdir(), named pi-tps-<pid>-<ts>-<random> and owned by the .owner marker ({ pid, created, v: 1 }).
• On Linux/macOS the directory is mode 0700 and snapshots are mode 0600; on Windows the user's own temp directory and inherited ACLs apply with no POSIX modes.
• Snapshot packets contain only metric/state fields (identity, model, phase, active tool, TPS, token counters, PID, timestamps) — never prompt, task, or generated text.
• Children unlink their own snapshot on normal shutdown. The parent removes only its own session directory on session_shutdown; a startup scavenger removes only verified package-owned stale directories (.owner + dead PID + older than one hour), preserving every foreign or markerless directory.
• All metrics are session-scoped and in-memory. There is no telemetry, no analytics, no network service, and no durable storage; removing the package and restarting leaves no residual state.

Supported platforms

Linux, macOS, and Windows. The channel and tests use only cross-platform Node APIs (fs, os, path, process, timers); no shell commands run on any path. Run the suite with the Node built-in runner:

npm test

Package metadata

• Name: tps-gentle-pi
• Node requirement: >=24.0.0 (engines.node). Node 24 executes the TypeScript sources directly via type stripping, so there is no build step.
• Pi manifest: pi.extensions = ["./extensions"] (Pi discovers the extension here)
• Discovery keywords: pi-package, pi-extension, throughput, tokens-per-second, tps, meter
• Optional peer dependency: @earendil-works/pi-coding-agent with the "*" range, declared optional via peerDependenciesMeta. Pi bundles its core packages, so extensions list them as "*" peers and never bundle them.
• Release channel: publishConfig.access is public; releases go through the GitHub Actions publish.yml workflow with npm provenance.

Repository

• Source: https://github.com/glacayo/tps-gentle-pi
• Issues: https://github.com/glacayo/tps-gentle-pi/issues

Troubleshooting

Symptom	Cause and fix
Main meter works, no subagent rows	Install as a package (pi install npm:tps-gentle-pi) instead of a pi -e load, so children inherit the extension.
Panel never appears	Ensure the session is a TUI session (ctx.mode === "tui"); headless/RPC sessions are silent by design.
Row labels show subagent · <pid>	Correlation evidence is ambiguous; this is the honest fallback, not a bug. Run only one delegated task to get a badge.
Lines look truncated on a narrow terminal	The panel clamps adaptively (wide ≥ 120, standard 80–119, narrow 60). Fields hide deterministically rather than overflowing.
npm test fails with a module-not-found	Use Node 24 (node --test runs .ts natively via type stripping); no build step is required.
