Web Annotator for Pi

Annotate webpage elements or text, send targeted change requests to Pi, or copy them as Markdown.

Web Annotator for Pi adds an on-page review layer to Firefox. Click an element or select text, write the change you want, and keep reviewing across reloads and page navigation. Copy one note or the whole collection for Pi, or use the optional local bridge to queue annotations in the active Pi session and see progress in Firefox.

Features

• Element annotations: point at a button, card, heading, image, or other element and attach a change request.
• Text annotations: select a phrase or paragraph and keep the quoted text with the note.
• Source-friendly context: capture stable attributes, visible text, component hints when available, and a positional fallback.
• Cross-page collections: keep one review collection while navigating within the same site.
• Pi-ready export: copy one annotation or the full collection as Markdown or JSON.
• Optional Pi workflow: send one note, send all pending notes, or save and send in one action.
• Live Pi status: distinguish pending, queued, active, and completed work.
• Keyboard workflow: annotate, pause capture, switch modes, copy, save, and dismiss without leaving the page.
• Local-first operation: no account, analytics, advertising, remote code, or developer-operated service.

Demo

Watch the full-size MP4 recording.

The repository includes a local release-planning page with stable annotation targets. Run the page, Firefox extension, and an isolated Pi session in separate terminals:

npm run demo:serve
npm run demo:browser
npm run demo:pi

demo:pi starts Pi from demo/, keeps the session ephemeral, ignores parent context and project resources, and enables only read, edit, and write tools. The model provider still receives annotations that you explicitly send.

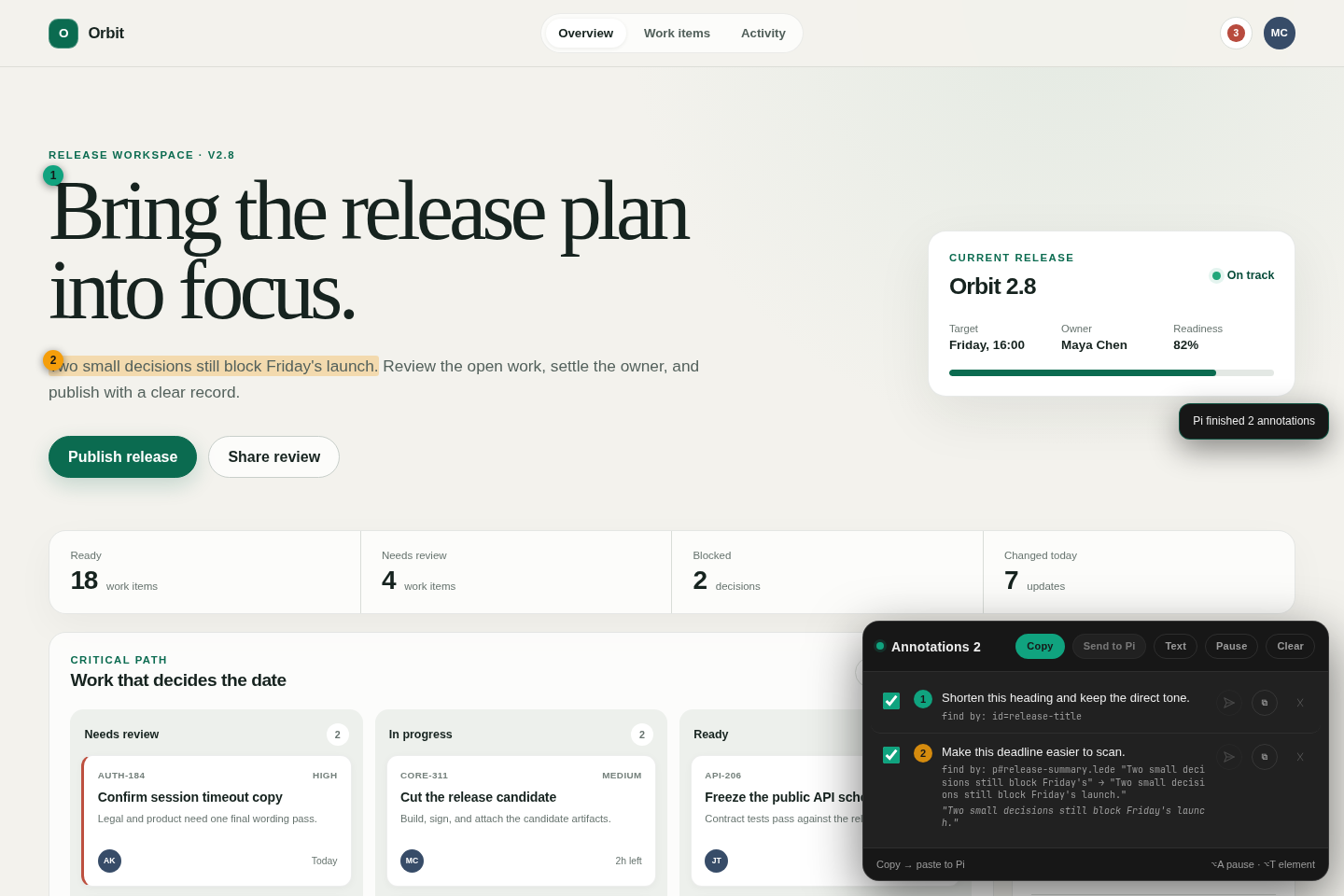

Generate the four browser screenshots with the real annotation content script and a local bridge simulation:

npm run screenshots

Record the complete browser-to-agent flow with one public fixture annotation:

npm run demo:video

The video runner starts Pi in RPC mode inside a temporary copy of demo/, blocks file tools from leaving that workspace, sends the browser annotation through the real loopback bridge, verifies the model's file edit after reload, renders the actual RPC events beside the browser, and encodes an MP4 plus the animated README preview. This command sends one public fixture annotation to your configured model provider.

See demo/README.md for the storyboard, exact commands, safety limits, and capture details.

Install

Firefox Add-ons

The signed Firefox Add-ons listing is being prepared. The AMO link will be added here after approval. The extension supports Firefox desktop only; Firefox for Android is unsupported. After the first installation, Firefox opens a welcome tab with the annotation workflow and Pi setup commands.

To test the extension before the listing is approved, follow the temporary installation steps in CONTRIBUTING.md.

Use

Annotate an element

1. Enable Web Annotator for Pi from the toolbar or press Alt+Shift+A.
2. Hover over the page to preview the current target.
3. Click an element.
4. Write the requested change.
5. Choose Save, or choose Save and send when the Pi bridge is connected.

Annotate text

1. Switch the panel from Element to Text, or press Alt+T.
2. Select text on the page.
3. Write the requested change and save it.

Text annotations use an amber highlight. Element annotations use green outlines and pins.

Export a review

• Copy exports the full collection as Markdown.
• The copy button on a row exports only that annotation.
• Alt+Shift+J copies the collection as JSON.
• Clear removes the current site's collection after confirmation.

The Markdown includes page URLs, source or component hints when available, stable attributes, visible text, selected text, and a positional DOM fallback. Page-derived values are marked as untrusted reference data for the receiving agent.

Send annotations to Pi

The Firefox extension works without Pi. To enable the local bridge, install the Pi package:

pi install npm:pi-web-annotator

Restart Pi, then start the bridge:

/annotation-server start

The bridge listens on 127.0.0.1:17373. It accepts marked extension requests from the local Firefox background script and stops with the Pi session.

The first send opens a bundled consent page. Choose Allow sending to local Pi, approve Firefox's optional data permission, return to the annotated page, and send again. Nothing is sent to Pi before both consent and a send action.

Browser state	Meaning
Empty checkbox	The annotation is pending and ready to send.
Right arrow	Pi accepted and queued the annotation.
Spinner	Pi is working on the annotation.
Checked checkbox	Pi finished the annotation.

Use Save and send for a new note, the arrow button for one pending row, or Send to Pi for all pending rows. A toast confirms queue and completion events.

Pi bridge commands:

/annotation-server status
/annotation-server stop

For a one-off Pi run from this checkout:

pi -e ./pi-extension/index.ts

Keyboard shortcuts

Shortcut	Action
Alt+Shift+A	Toggle Web Annotator for Pi for the active tab.
Alt+Shift+C	Copy all annotations as Markdown.
Alt+Shift+J	Copy all annotations as JSON.
Alt+A	Pause or resume page capture while the panel stays open.
Alt+T	Switch between element and text mode.
Ctrl+Enter / Cmd+Enter	Run the primary save action: save and send when Pi is connected, otherwise save.
Esc	Cancel the open note editor.

Privacy

Web Annotator for Pi has no developer-operated backend and does not include analytics or advertising. Saved annotations use Firefox extension storage, isolated from page scripts. The optional Pi bridge sends selected annotation data to Pi on 127.0.0.1 after explicit Firefox consent and a send action. Pi may then send that content to the model provider configured by the user.

Annotations can contain page URLs, visible or selected text, element metadata, and your notes. Do not annotate secrets. Read PRIVACY.md for storage details, permission rationale, deletion behavior, and the Pi boundary.

Permissions

Permission	Why it is needed
activeTab	Enables the overlay after a toolbar or keyboard action.
scripting	Injects and removes the annotation overlay in the active tab.
storage	Keeps a separate annotation collection for each website.
<all_urls>	Reinjects an already-enabled overlay after navigation and allows annotation on user-selected sites.
Optional browsingActivity	Allows page URLs to be included when the user sends annotations to local Pi.
Optional websiteContent	Allows selected text and element context to be included when the user sends annotations to local Pi.

Contributing

Read CONTRIBUTING.md before opening a pull request.

Attribution

Web Annotator for Pi began as a Firefox port of kuzmany/browser-annotations by Zdeno Kuzmany. This project retains and builds on the upstream product idea, overlay design, and parts of the original content-script implementation. It has since added Firefox-specific packaging and navigation, cross-page collections, source-aware and text annotations, consent and privacy controls, publishing tooling, and the optional Pi workflow.

The project is available under the MIT License, which preserves the upstream and current maintainer copyright notices. See THIRD_PARTY_NOTICES.md for the upstream code attribution and licenses for development tools.
